Centric 123.63047 - C-Tek Standard Brake Drum
$3949
MSRP: $42.65
Save: $3.16
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

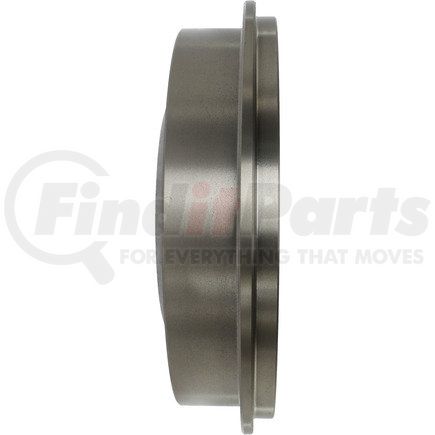

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 5.909 |
| Weight [cntrc] Lbs | 13.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 70.612 |
| Height [cntrc] In | 2.780 |
| Friction Surface Width [cntrc] Mm | 50.546 |
| Friction Surface Width [cntrc] In | 1.990 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.600 MM |
| Maximum Brake Diameter (Discard) | 9.079 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 278.892 MM |
| Outside Diameter | 10.980 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 228.000 MM |
| Nominal Drum Diameter | 8.976 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890387992 |
Part Interchanges
CENTRIC 123.63047 Cross Reference
We have 1 alternatives for the 123.63047 by CENTRIC:
Fits Vehicles
- Chrysler PT Cruiser (2004-2009)
