CENTRIC 123.63042 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

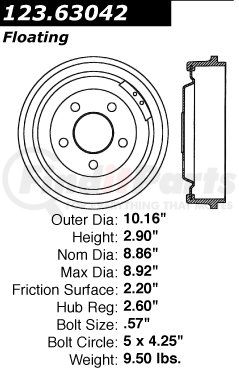

CENTRIC 123.63042 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.318 |
| Weight [cntrc] Lbs | 9.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 66.040 |
| Hub Hole / Register [cntrc] In | 2.600 |
| Height [cntrc] Mm | 73.660 |
| Height [cntrc] In | 2.900 |
| Friction Surface Width [cntrc] Mm | 55.880 |
| Friction Surface Width [cntrc] In | 2.200 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 226.550 MM |
| Maximum Brake Diameter (Discard) | 8.919 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 258.064 MM |
| Outside Diameter | 10.160 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.478 MM |
| Mounting Hole Diameter | 0.570 IN |
| Nominal Drum Diameter | 225.000 MM |
| Nominal Drum Diameter | 8.858 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890140696 |
CENTRIC 123.63042 Cross References
| Brand | Part Number |
|---|---|
| 122.63042, F1EZ7E391AA | |
| N/A | BD61882, BD61965, 0832534, 0832535, 80014, 80015, BD80014, 123.63042, 80014G, 80015G, J4423134, 4423134, 32001490, 140592, 140609, PDR0592, PDR0609, 203556, 204017, 6401634, 6401635, 913, AD8342, AD8342E, D9410, 87470, 87471, X21836, 2470, 2471, 2471R, 2470DGS, 2471DGS, 8832042, 36541002 |
| RAYBESTOS | 2470, 2470R, 2471, 2471R |
CENTRIC 123.63042 Fits Vehicles
- Eagle Premier (1988-1989)
- Dodge Monaco (1990-1992)
