Name: Centric 123.62035 C-Tek Standard Brake Drum
SKU: 12362035
Price: 38.99 USD
Availability: InStock

CENTRIC part description

Product Description

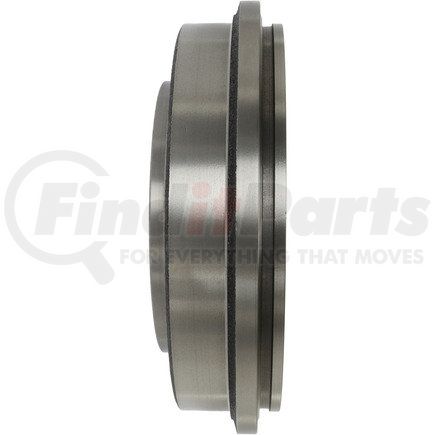

C-Tek Standard Brake Drum

Features & Benefits

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Weight [cntrc] Kgs	5.795
Weight [cntrc] Lbs	12.750
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	100.000
Bolt Circle Diameter [cntrc] In	3.937
Hub Hole / Register [cntrc] Mm	56.896
Hub Hole / Register [cntrc] In	2.240
Height [cntrc] Mm	73.406
Height [cntrc] In	2.890
Friction Surface Width [cntrc] Mm	54.610
Friction Surface Width [cntrc] In	2.150
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	231.000 MM
Maximum Brake Diameter (Discard)	9.094 IN
Bolt Hole Quantity	4
Outside Diameter	271.018 MM
Outside Diameter	10.670 IN
Outer Cooling Fins	No
Mounting Hole Diameter	13.720 MM
Mounting Hole Diameter	0.540 IN
Nominal Drum Diameter	229.200 MM
Nominal Drum Diameter	9.024 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708300050
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
Harmonized Tariff Code (HTS)	8708305030
UPC	805890492672

Part Interchanges

CENTRIC 123.62035 Cross Reference

We have 1 alternatives for the 123.62035 by CENTRIC:

RAYBESTOS 9749R

Fits Vehicles

Pontiac G4 (2005-2006)
Pontiac G5 (2007-2008)
Pontiac Pursuit (2005-2006)
Saturn Ion (2003-2007)
Chevrolet Cobalt (2005-2008)
