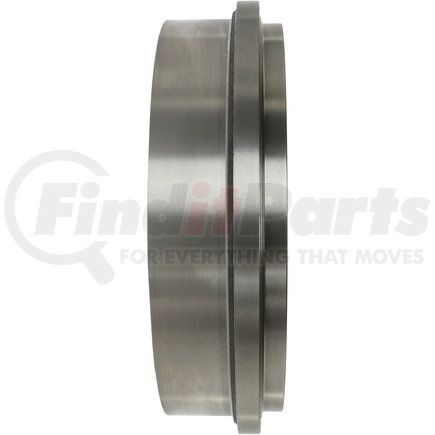

Centric 123.62034 - C-Tek Standard Brake Drum
$4149
MSRP: $45.85
Save: $4.36
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 5.909 |
| Weight [cntrc] Lbs | 13.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 57.404 |
| Hub Hole / Register [cntrc] In | 2.260 |
| Height [cntrc] Mm | 70.104 |
| Height [cntrc] In | 2.760 |
| Friction Surface Width [cntrc] Mm | 53.594 |
| Friction Surface Width [cntrc] In | 2.110 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 231.000 MM |
| Maximum Brake Diameter (Discard) | 9.094 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 271.018 MM |
| Outside Diameter | 10.670 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.224 MM |
| Mounting Hole Diameter | 0.560 IN |
| Nominal Drum Diameter | 229.200 MM |
| Nominal Drum Diameter | 9.024 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890241591 |
Part Interchanges
CENTRIC 123.62034 Cross Reference
We have 4 alternatives for the 123.62034 by CENTRIC:
Fits Vehicles
- Chevrolet Cavalier (2003-2005)
- Pontiac Sunfire (2003-2005)
