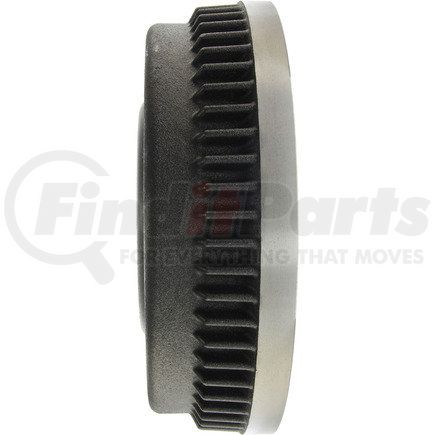

Name: Centric 123.61023 C-Tek Standard Brake Drum
SKU: 12361023
Price: 65.49 USD
Availability: InStock

CENTRIC part description

Product Description

C-Tek Standard Brake Drum

Features & Benefits

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Weight [cntrc] Kgs	11.068
Weight [cntrc] Lbs	24.350
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	114.300
Bolt Circle Diameter [cntrc] In	4.500
Hub Hole / Register [cntrc] Mm	70.612
Hub Hole / Register [cntrc] In	2.780
Height [cntrc] Mm	100.838
Height [cntrc] In	3.970
Friction Surface Width [cntrc] Mm	70.866
Friction Surface Width [cntrc] In	2.790
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	282.400 MM
Maximum Brake Diameter (Discard)	11.120 IN
Bolt Hole Quantity	5
Outside Diameter	330.962 MM
Outside Diameter	13.030 IN
Outer Cooling Fins	Yes
Mounting Hole Diameter	14.224 MM
Mounting Hole Diameter	0.560 IN
Nominal Drum Diameter	279.400 MM
Nominal Drum Diameter	11.000 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708300050
Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	805890052227

Part Interchanges

CENTRIC 123.61023 Cross Reference

We have 3 alternatives for the 123.61023 by CENTRIC:

Fits Vehicles

Lincoln Continental (1980)
Ford Lobo (2009-2010)
Ford LTD Crown Victoria (1987-1991)
Mercury Colony Park (1987-1991)
Lincoln Mark VI (1980-1983)
Mercury Marquis (1979-1982)
Mercury Grand Marquis (1979-1989)
Lincoln Town Car (1981-2002)
Ford LTD (1979-1986)
Ford Country Squire (1987-1991)
