CENTRIC part description
Product Description

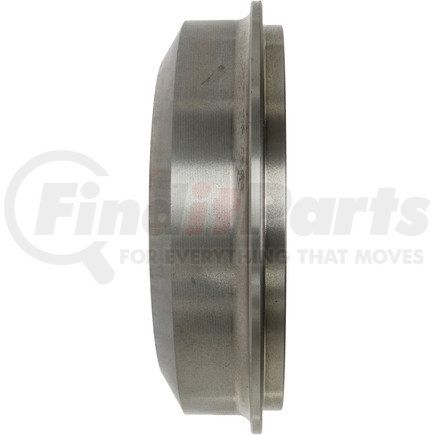

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 3.182 |
| Weight [cntrc] Lbs | 7.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 89.920 |
| Hub Hole / Register [cntrc] In | 3.540 |
| Height [cntrc] Mm | 58.600 |
| Height [cntrc] In | 2.307 |
| Friction Surface Width [cntrc] Mm | 38.940 |
| Friction Surface Width [cntrc] In | 1.533 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 182.000 MM |
| Maximum Brake Diameter (Discard) | 7.165 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 216.000 MM |
| Outside Diameter | 8.504 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.500 MM |
| Mounting Hole Diameter | 0.492 IN |
| Nominal Drum Diameter | 177.800 MM |
| Nominal Drum Diameter | 7.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890094647 |
Part Interchanges
CENTRIC 123.51004 Cross Reference
We have 4 alternatives for the 123.51004 by CENTRIC:
Fits Vehicles
- Hyundai Accent (1995-1996)
