Name: Centric 123.51003 C-Tek Standard Brake Drum
SKU: 12351003
Price: 38.99 USD
Availability: InStock

CENTRIC part description

Product Description

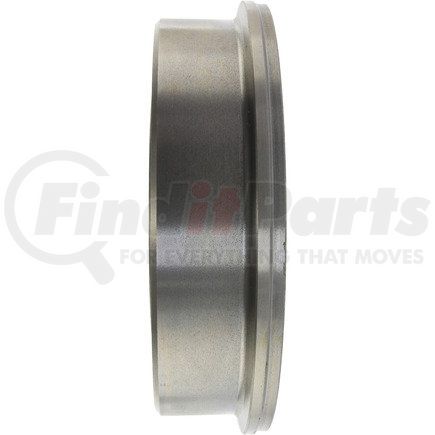

C-Tek Standard Brake Drum

Features & Benefits

Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Misc Holes [cntrc]	2
Weight [cntrc] Kgs	1.073
Weight [cntrc] Lbs	2.360
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	114.300
Bolt Circle Diameter [cntrc] In	4.500
Hub Hole / Register [cntrc] Mm	89.920
Hub Hole / Register [cntrc] In	3.540
Height [cntrc] Mm	63.600
Height [cntrc] In	2.504
Friction Surface Width [cntrc] Mm	54.400
Friction Surface Width [cntrc] In	2.142
Product Grade [cntrc]	Standard
Maximum Brake Diameter (Discard)	230.600 MM
Maximum Brake Diameter (Discard)	9.079 IN
Bolt Hole Quantity	4
Outside Diameter	272.100 MM
Outside Diameter	10.713 IN
Outer Cooling Fins	No
Mounting Hole Diameter	12.500 MM
Mounting Hole Diameter	0.492 IN
Nominal Drum Diameter	228.600 MM
Nominal Drum Diameter	9.000 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708300050
Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	805890094371

Part Interchanges

CENTRIC 123.51003 Cross Reference

We have 4 alternatives for the 123.51003 by CENTRIC:

Fits Vehicles

Hyundai Sonata (1994-1998)
