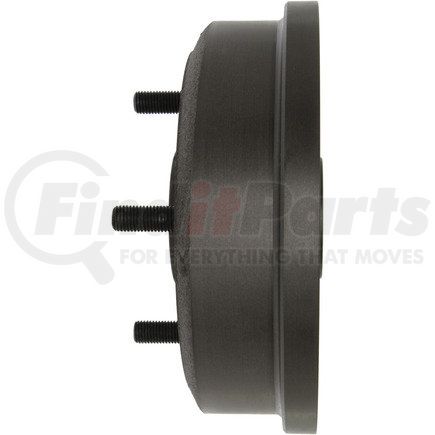

Centric 123.46002 - C-Tek Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Kgs | 3.409 |
| Weight [cntrc] Lbs | 7.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 66.900 |
| Hub Hole / Register [cntrc] In | 2.634 |
| Height [cntrc] Mm | 72.000 |
| Height [cntrc] In | 2.835 |
| Friction Surface Width [cntrc] Mm | 42.000 |
| Friction Surface Width [cntrc] In | 1.654 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 182.000 MM |
| Nominal Drum Diameter | 7.087 IN |
| Nominal Drum Diameter | 180.000 MM |
| Mounting Hole Diameter | 0.551 IN |
| Mounting Hole Diameter | 14.000 MM |
| Outer Cooling Fins | No |
| Outside Diameter | 8.228 IN |
| Outside Diameter | 209.000 MM |
| Bolt Hole Quantity | 4 |
| Maximum Brake Diameter (Discard) | 7.165 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890051985 |
Part Interchanges
CENTRIC 123.46002 Cross Reference
We have 4 alternatives for the 123.46002 by CENTRIC:
Fits Vehicles
- Mitsubishi Precis (1987-1988)
- Plymouth Champ (1979-1982)
- Plymouth Colt (1979-1984)
- Dodge Colt (1979-1984)
- Hyundai Excel (1986-1988)
