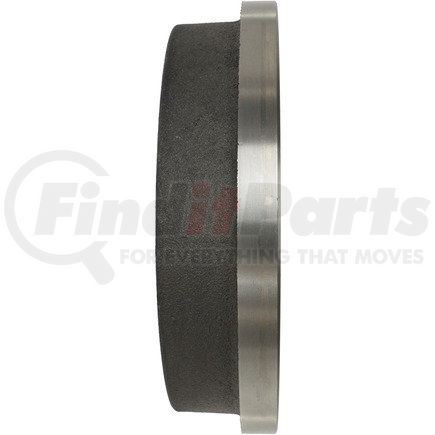

Centric 123.44036 - C-Tek Standard Brake Drum
$3549
MSRP: $38.20
Save: $2.71
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 5.227 |
| Weight [cntrc] Lbs | 11.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 62.000 |
| Hub Hole / Register [cntrc] In | 2.441 |
| Height [cntrc] Mm | 64.000 |
| Height [cntrc] In | 2.520 |
| Friction Surface Width [cntrc] Mm | 55.000 |
| Friction Surface Width [cntrc] In | 2.165 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.600 MM |
| Maximum Brake Diameter (Discard) | 9.079 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 277.000 MM |
| Outside Diameter | 10.906 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.500 MM |
| Mounting Hole Diameter | 0.571 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890239833 |
Part Interchanges
CENTRIC 123.44036 Cross Reference
We have 3 alternatives for the 123.44036 by CENTRIC:
Fits Vehicles
- Toyota RAV4 (1996-2005)
