(888) 312-8812 Login SignupCENTRIC 123.33004 C-Tek Standard Brake Drum
Tap to view 4 more
$9699
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
CENTRIC 123.33004 Part Description
Manufacturer
Product Description

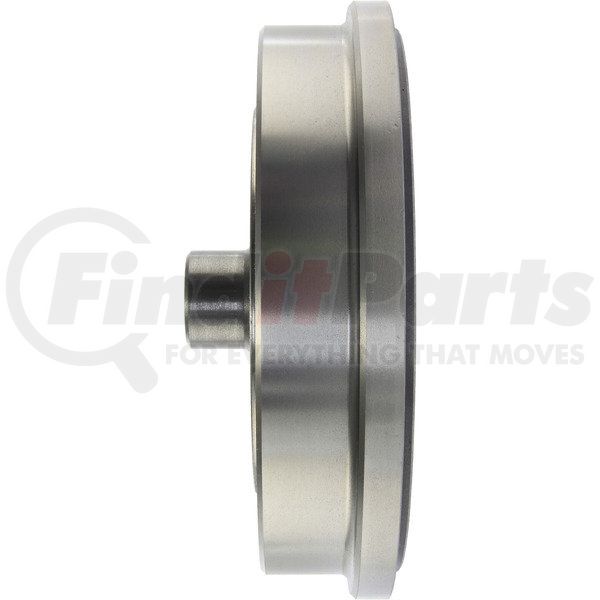

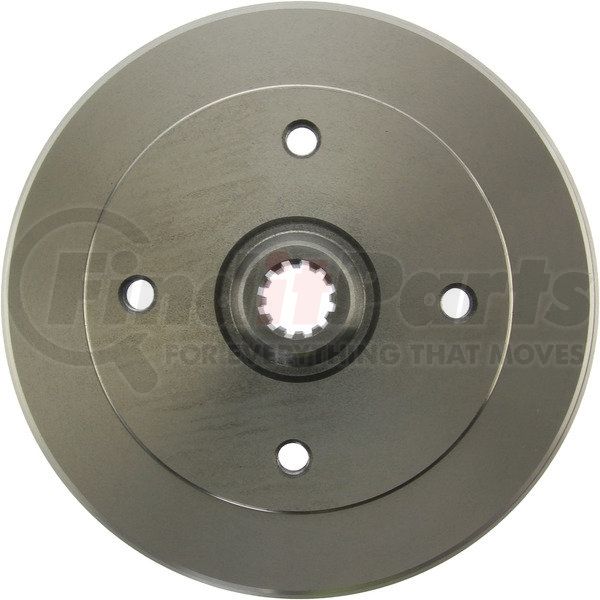

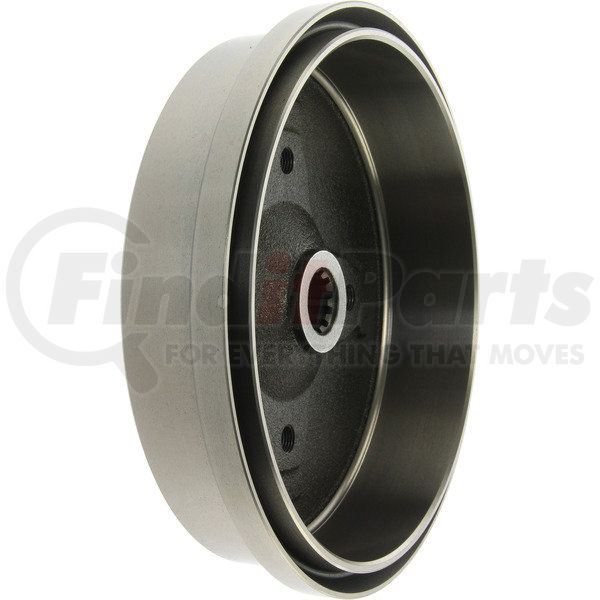

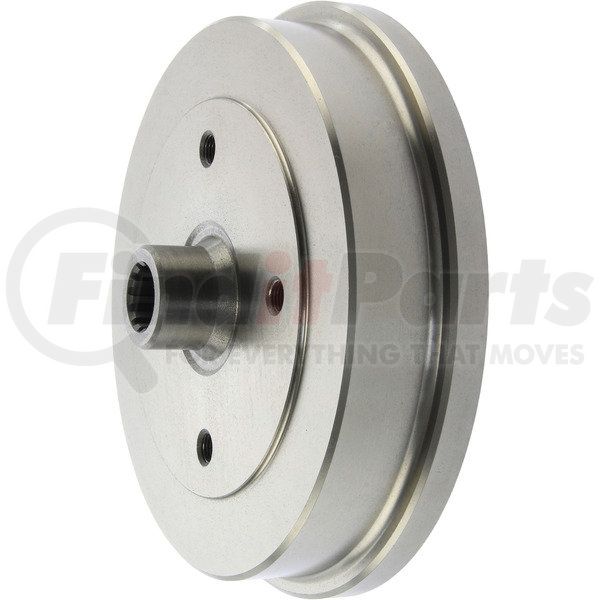

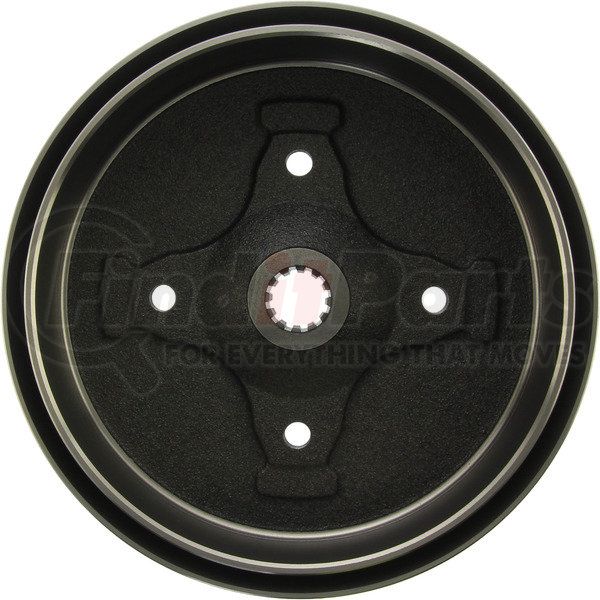

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.33004 Specifications
Product Attributes
| Notes [cntrc] | Splined |
| Weight [cntrc] Kgs | 6.364 |
| Weight [cntrc] Lbs | 14.000 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 130.000 |
| Bolt Circle Diameter [cntrc] In | 5.118 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Height [cntrc] Mm | 94.500 |
| Height [cntrc] In | 3.720 |
| Friction Surface Width [cntrc] Mm | 50.500 |
| Friction Surface Width [cntrc] In | 1.988 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 231.000 MM |
| Maximum Brake Diameter (Discard) | 9.094 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 262.000 MM |
| Outside Diameter | 10.315 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 14.000 MM |
| Nominal Drum Diameter | 230.000 MM |
| Nominal Drum Diameter | 9.055 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890051541 |
CENTRIC 123.33004 Cross References
| Brand | Part Number |
|---|---|
| 122.33004, F1EZ14632AB | |
| N/A | BD97066, 3820, BD3820, 123.33004, 6316110, 63 16 110, 3820G, 113501615, 113501615B, 113501615G, 113501615J, 100602, 140246, PDR0246, 217200, 6401266, 657, EBD008E, D9115, 87343, 21020, X30735, BD1289, 109343, 9343, 9343R, 9343DGS, 78894002, 7894002, 78-94002, 36574004, 600.1956.00 |
| RAYBESTOS | 9343, 9343R |
| WAGNER | F120538, BD97066 |
CENTRIC 123.33004 Fits Vehicles
- Volkswagen Brasilia (1975-1982)
- Volkswagen Sedan (1975-2004)
- Volkswagen Super Beetle (1971-1979)
- Volkswagen Karmann Ghia (1965-1974)
- Volkswagen Beetle (1967-1977)
