(888) 312-8812 Login SignupCENTRIC 122.63032 Centric Premium Brake Drum
Tap to view 2 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.63032 Part Description
Manufacturer
Product Description

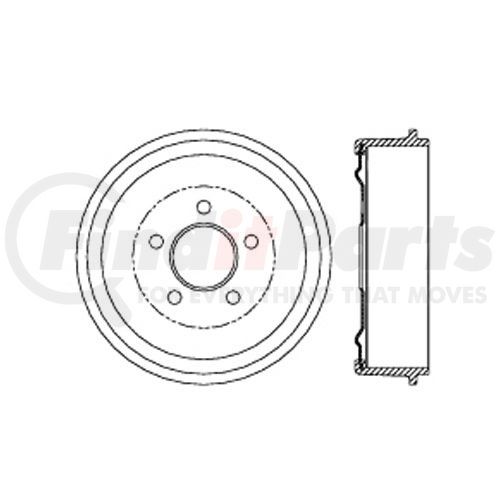

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.63032 Specifications
Product Attributes
| Weight [cntrc] Kgs | 7.500 |
| Weight [cntrc] Lbs | 16.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 71.374 |
| Hub Hole / Register [cntrc] In | 2.810 |
| Height [cntrc] Mm | 85.598 |
| Height [cntrc] In | 3.370 |
| Friction Surface Width [cntrc] Mm | 71.374 |
| Friction Surface Width [cntrc] In | 2.810 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 255.500 MM |
| Maximum Brake Diameter (Discard) | 10.060 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 311.912 MM |
| Outside Diameter | 12.280 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.750 MM |
| Mounting Hole Diameter | 0.620 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890038092 |
CENTRIC 122.63032 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | BD60158, 87063, 8784, 123.63032, 3219569, J3219569, 1835585, 3164613, 3176894, 204057, 140108, 2506, 6401142, 8832032, AD8332, 36566005 |
CENTRIC 122.63032 Fits Vehicles
- American Motors Rambler (1969)
- American Motors Javelin (1968-1973)
- American Motors American (1967-1968)
- American Motors Classic (1964-1966)
- American Motors Rebel (1967-1970)
- American Motors Matador (1971-1974)
- American Motors Marlin (1965-1967)
- American Motors AMX (1968-1970)
- American Motors Ambassador (1960-1974)
- American Motors Pacer (1975-1976)
- American Motors Hornet (1970-1976)
- American Motors Gremlin (1970-1976)
CENTRIC 122.63032 Cross References
