(888) 312-8812 Login SignupCENTRIC 122.61031 Centric Premium Brake Drum
Tap to view 4 more
MSRP: $59.03
$5899
Save $0.04
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
CENTRIC 122.61031 Part Description
Manufacturer
Product Description

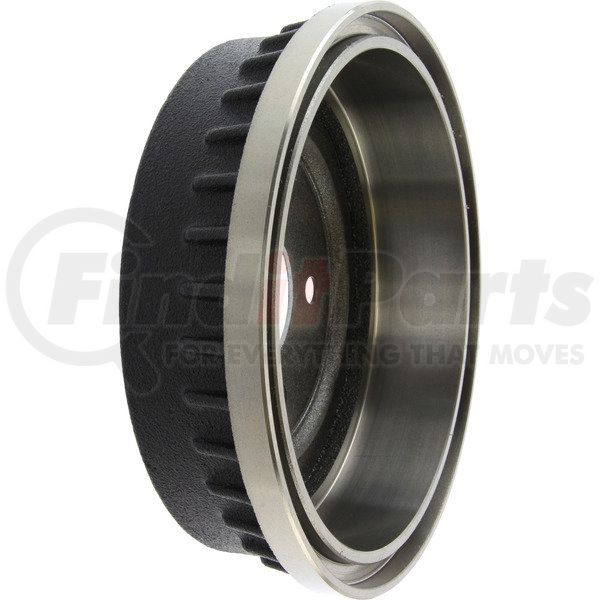

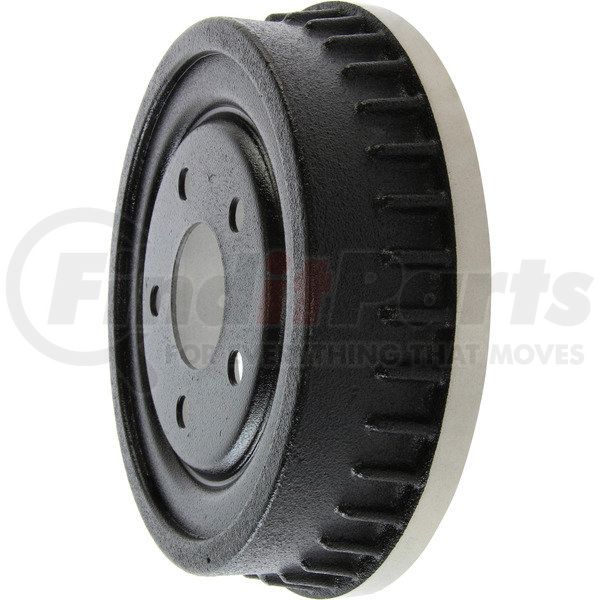

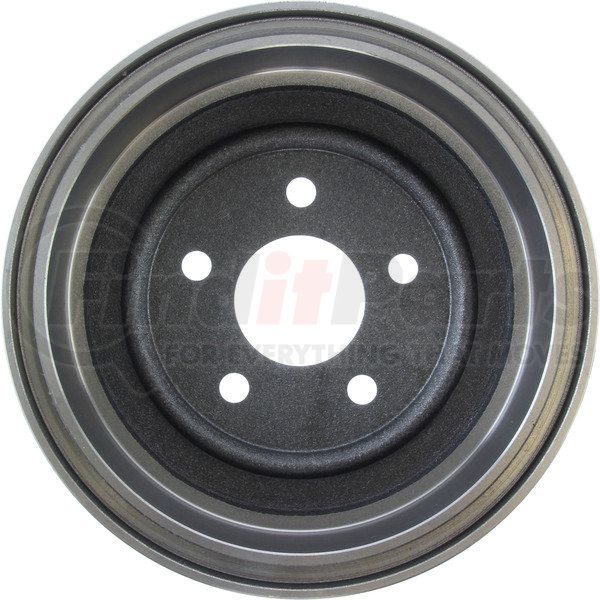

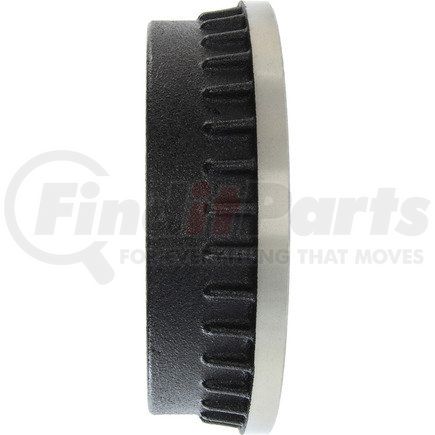

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.61031 Specifications
Product Attributes
| Weight [cntrc] Kgs | 5.227 |
| Weight [cntrc] Lbs | 11.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 107.950 |
| Bolt Circle Diameter [cntrc] In | 4.250 |
| Hub Hole / Register [cntrc] Mm | 64.516 |
| Hub Hole / Register [cntrc] In | 2.540 |
| Height [cntrc] Mm | 70.866 |
| Height [cntrc] In | 2.790 |
| Friction Surface Width [cntrc] Mm | 51.816 |
| Friction Surface Width [cntrc] In | 2.040 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 226.550 MM |
| Maximum Brake Diameter (Discard) | 8.919 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 264.414 MM |
| Outside Diameter | 10.410 IN |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 14.478 MM |
| Mounting Hole Diameter | 0.570 IN |
| Nominal Drum Diameter | 225.000 MM |
| Nominal Drum Diameter | 8.858 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890045052 |
CENTRIC 122.61031 Cross References
| Brand | Part Number |
|---|---|
| 2301, BD60845 | |
| N/A | BD60845, E127-66-036, 63 92 640, 6392640, 8956, 112301, 8956G, E6DZ1113B, E6DZ1113D, E6DZ1126B, E6DZ1126D, F0DZ1126C, F2DZ1126B, YF1Z1V126AA, 140502, 6401462, 844, AD8131, D2606, E12766036, 87301, 42227, 42227-R, F2DC-A, YH140502, 1408-25103, X21690, 23035, BD1503, ZAD8131, 19510, 8834031, 68140, 36554027 |
| RAYBESTOS | 2301, 2301R |
| Raybestos Brakes | 2301, 2301R |
| WAGNER | BD60845 |
CENTRIC 122.61031 Fits Vehicles
- Mercury Sable (1986-2000)
- Ford Taurus (1986-2000)
