(888) 312-8812 Login SignupCENTRIC 122.58001 Centric Premium Brake Drum
Tap to view 2 more
*Representative image - actual part not displayed
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 122.58001 Part Description
Manufacturer
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise

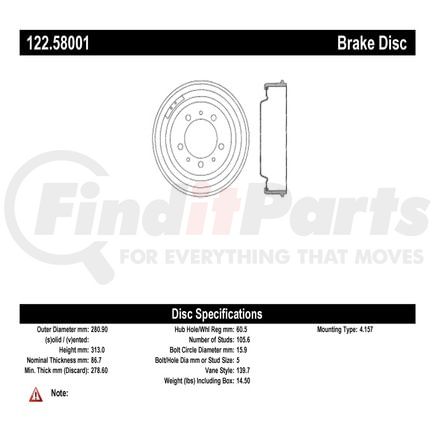

CENTRIC 122.58001 Specifications
Product Attributes
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Kgs | 6.591 |
| Weight [cntrc] Lbs | 14.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 105.600 |
| Hub Hole / Register [cntrc] In | 4.157 |
| Height [cntrc] Mm | 86.690 |
| Height [cntrc] In | 3.413 |
| Friction Surface Width [cntrc] Mm | 60.500 |
| Friction Surface Width [cntrc] In | 2.382 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 280.900 MM |
| Maximum Brake Diameter (Discard) | 11.060 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 313.000 MM |
| Outside Diameter | 12.323 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.900 MM |
| Mounting Hole Diameter | 0.626 IN |
| Nominal Drum Diameter | 278.600 MM |
| Nominal Drum Diameter | 10.969 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 805890069058 |
CENTRIC 122.58001 Cross References
CENTRIC 122.58001 Fits Vehicles
- Jeep Wagoneer (1965-1973)
