Name: Centric 122.51014 Centric Premium Brake Drum
SKU: 12251014
Price: 51.99 USD
Availability: InStock

CENTRIC part description

Product Description

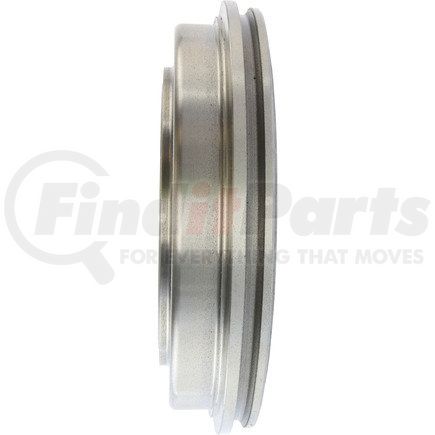

Centric Premium Brake Drum

Features & Benefits

OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise

Product Attributes

Misc Holes [cntrc]	2
Weight [cntrc] Kgs	4.114
Weight [cntrc] Lbs	9.050
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	114.300
Bolt Circle Diameter [cntrc] In	4.500
Hub Hole / Register [cntrc] Mm	76.000
Hub Hole / Register [cntrc] In	2.992
Height [cntrc] Mm	55.600
Height [cntrc] In	2.189
Friction Surface Width [cntrc] Mm	41.000
Friction Surface Width [cntrc] In	1.614
Product Grade [cntrc]	Premium
Maximum Brake Diameter (Discard)	205.200 MM
Maximum Brake Diameter (Discard)	7.070 IN
Bolt Hole Quantity	5
Outside Diameter	244.700 MM
Outside Diameter	9.634 IN
Outer Cooling Fins	No
Mounting Hole Diameter	12.500 MM
Mounting Hole Diameter	0.492 IN
Nominal Drum Diameter	203.000 MM
Nominal Drum Diameter	7.992 IN

Additional Information

Harmonized Tariff Code (HTS)	8708305030
Harmonized Tariff Code (Schedule B)	8708300050
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	805890432791

Part Interchanges

CENTRIC 122.51014 Cross Reference

We have 3 alternatives for the 122.51014 by CENTRIC:

Fits Vehicles

Hyundai Elantra (2007-2008)
