MPA ELECTRICAL part description

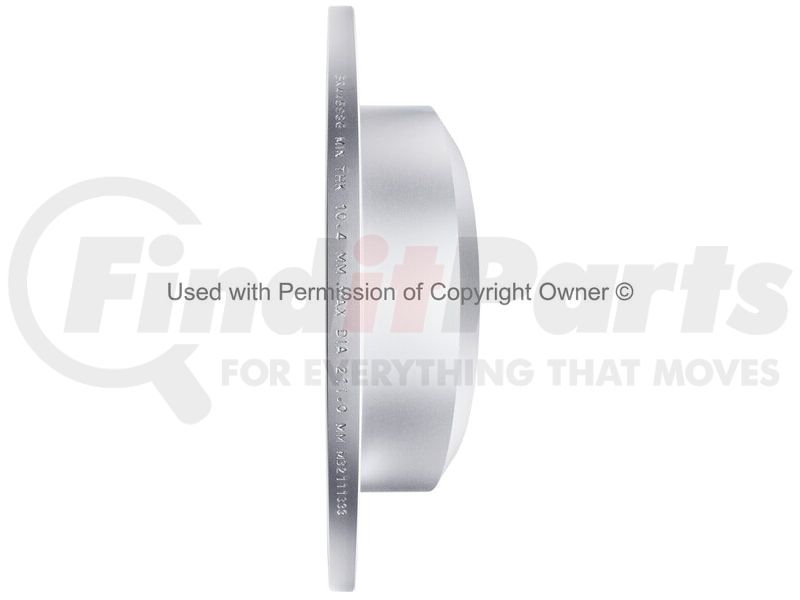

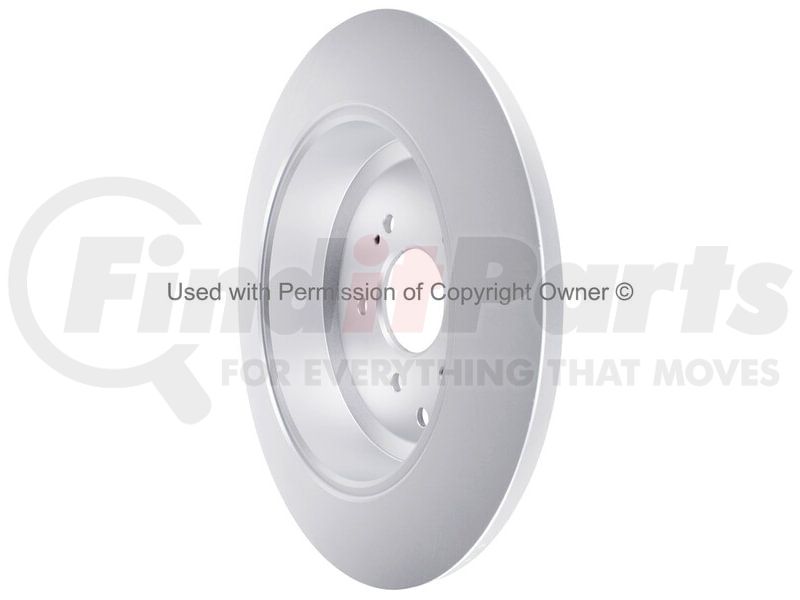

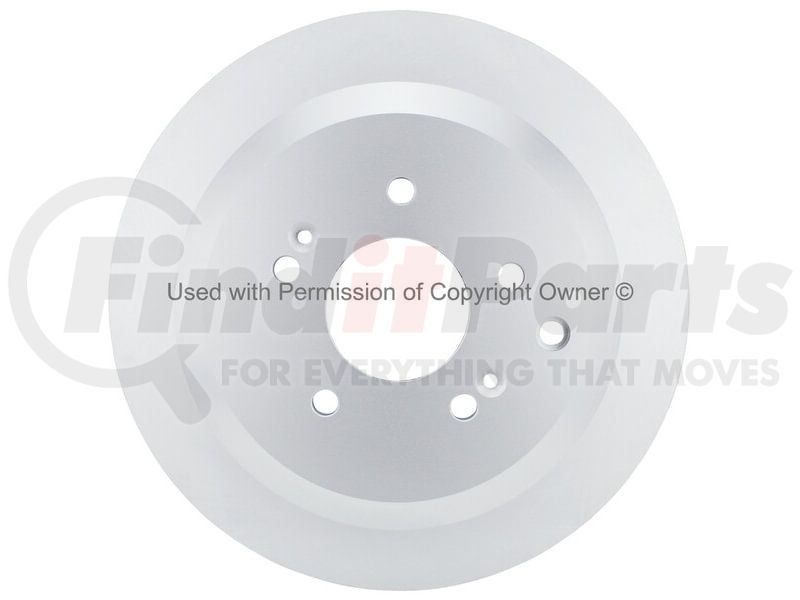

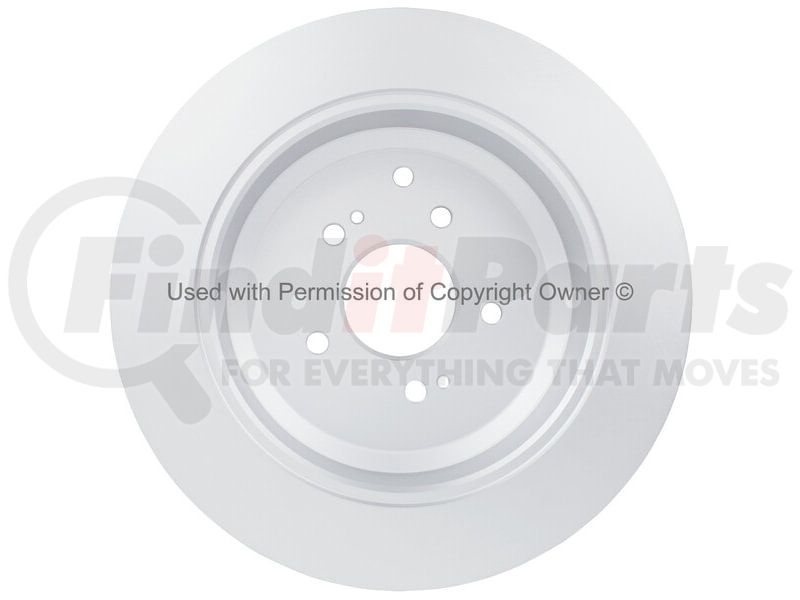

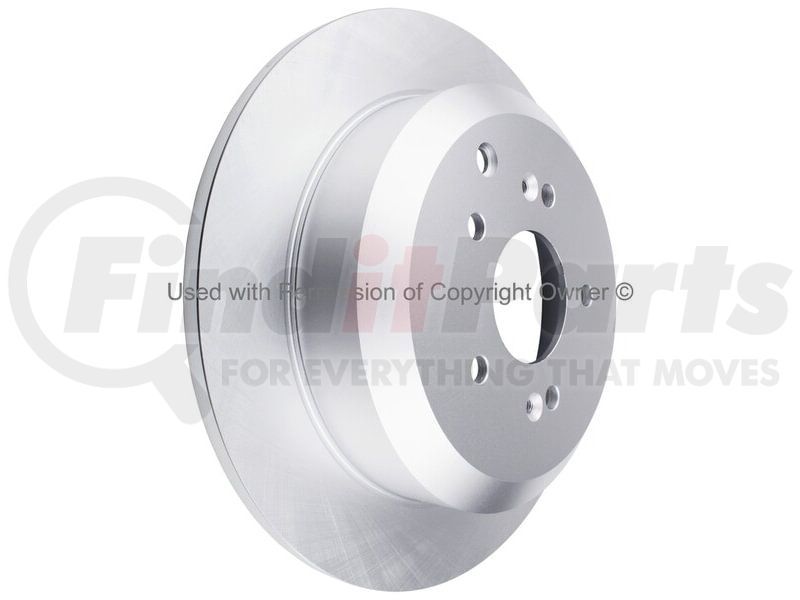

Disc Brake Rotor, for 2007-2012 Hyundai Veracruz

Product Description

Quality-Built Black Series Coated Rotor

Application Summary

Hyundai Veracruz 2012-2007

Features & Benefits

  • OE Style Symmetric Vane Designs
  • Non-directional friction surfaces
  • Precision machined mounting surfaces
  • Installation-ready without cleaning
  • Q-Shield Protective Coatings
  • High-Carbon Metullargy
  • G11H18 Alloys
  • Mill balanced
  • Straddle Cut to eliminate DTV

Black Series Brake Rotor, Brake Rotor, MPA Brake Rotot, Quality-Built Brake Rotor, Coated Rotor, Black Coated Rotor

Product Attributes

Finish Coated
Product Condition New
Discard Thickness 10.4 MM
Discard Thickness 0.4 IN
Nominal Thickness 12.0 MM
Nominal Thickness 0.5 IN
Disc Finish Coated
Hat Finish Coated
Rust Resistant Coating Yes
Outside Diameter 324.0 MM
Outside Diameter 12.8 IN
Grade Type Regular
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Solid
Bearings Included No
Center Hole Diameter 69.0 MM
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Mounting Bolt Hole Diameter 0.496 IN
Mounting Bolt Hole Diameter 12.6 MM
Stud/Lug Hole Quantity 5

Additional Information

Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
UPC 00190037433657

Fits Vehicles

  • Hyundai Veracruz (2007-2012)
