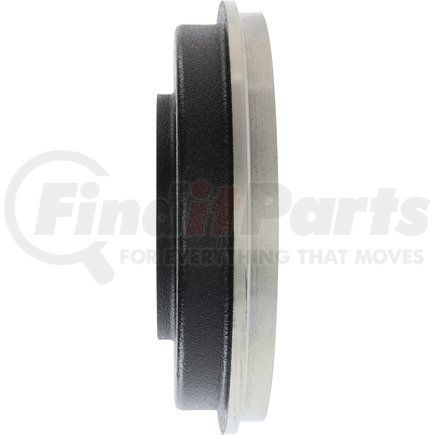

Centric 122.45018 - Centric Premium Brake Drum
$3799
MSRP: $40.62
Save: $2.63
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Kgs | 3.636 |
| Weight [cntrc] Lbs | 8.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 100.000 |
| Bolt Circle Diameter [cntrc] In | 3.937 |
| Hub Hole / Register [cntrc] Mm | 55.000 |
| Hub Hole / Register [cntrc] In | 2.165 |
| Height [cntrc] Mm | 58.000 |
| Height [cntrc] In | 2.283 |
| Friction Surface Width [cntrc] Mm | 40.400 |
| Friction Surface Width [cntrc] In | 1.591 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 201.500 MM |
| Maximum Brake Diameter (Discard) | 7.933 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 241.200 MM |
| Outside Diameter | 9.496 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Nominal Drum Diameter | 200.000 MM |
| Nominal Drum Diameter | 7.874 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890032519 |
Part Interchanges
- Raybestos Brakes 9538R
- Raybestos Brakes 9538
- BD125250
- 0832548
- BD920160
- 920160
- 63 74 270
- 6374270
- 80006
- 35057
- 35140G
- 80006G
- 116602
- D10226251
- DF7126251
- BW7Y26251
- B59626251A
- B59626251B
- B59626251C
- B59626251D
- F2C612448
- F2CZ1126A
- 140629
- 140633
- 860034
- 6401495
- 987
- DB4279
- JBD352
- D9421
- 100949
- 87538
- 1408-52447
- YH140629
- X21756
- 21105
- BD1615
- 8814018
- 78814018
- 36580015
CENTRIC 122.45018 Cross Reference
We have 4 alternatives for the 122.45018 by CENTRIC:
Fits Vehicles
- Mazda 2 (2011-2015)
- Mazda 323 (1992-1995)
- Mazda Protege (1992-2003)
- Mazda MX-3 (1992-1996)
- Mercury Tracer (1993-1996)
- Ford Escort (1993-1996)
