CENTRIC 122.45007 Part Description
Manufacturer
Product Description

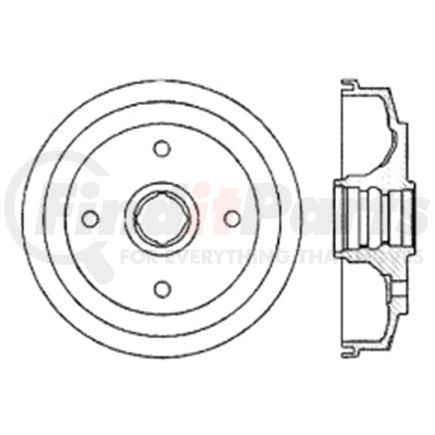

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.45007 Specifications
Product Attributes
| Weight [cntrc] Kgs | 4.318 |
| Weight [cntrc] Lbs | 9.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 59.500 |
| Hub Hole / Register [cntrc] In | 2.343 |
| Height [cntrc] Mm | 66.000 |
| Height [cntrc] In | 2.598 |
| Friction Surface Width [cntrc] Mm | 36.500 |
| Friction Surface Width [cntrc] In | 1.437 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 181.000 MM |
| Maximum Brake Diameter (Discard) | 7.126 IN |
| Bolt Hole Quantity | 4 |
| Outside Diameter | 211.000 MM |
| Outside Diameter | 8.307 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.250 MM |
| Mounting Hole Diameter | 0.482 IN |
| Nominal Drum Diameter | 180.000 MM |
| Nominal Drum Diameter | 7.087 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890032465 |
CENTRIC 122.45007 Cross References
| Brand | Part Number |
|---|---|
| 9366, 5260603, BD60603 | |
| N/A | 5260603, BD60603, 0832009, 6374200, 63 74 200, 3581, 3581G, 1015, B00126251, B00126251A, B00126251C, 123.45007, PDR0445, 140445, 212810, 6401436, 673, JBD161, D9148, 100904, 87366, 21034, X30732, BD1488, DB4046, 8814007, 36580007 |
| RAYBESTOS | 9366, 9366R |
| Raybestos Brakes | 9366, 9366R |
CENTRIC 122.45007 Fits Vehicles
- Mazda GLC (1981-1985)
