Name: Centric 122.40013 Centric Premium Brake Drum
SKU: 12240013
Price: 92.99 USD
Availability: InStock

CENTRIC part description

Product Description

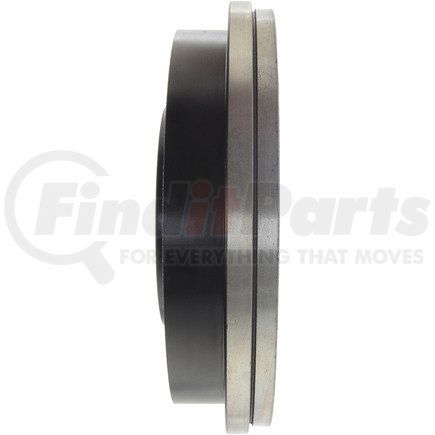

Centric Premium Brake Drum

Features & Benefits

OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise

Product Attributes

Misc Holes [cntrc]	2
Weight [cntrc] Kgs	10.227
Weight [cntrc] Lbs	22.500
Mounting Type [cntrc]	Floating
Bolt Circle Diameter [cntrc] Mm	114.300
Bolt Circle Diameter [cntrc] In	4.500
Hub Hole / Register [cntrc] Mm	64.000
Hub Hole / Register [cntrc] In	2.520
Height [cntrc] Mm	77.300
Height [cntrc] In	3.043
Friction Surface Width [cntrc] Mm	59.000
Friction Surface Width [cntrc] In	2.323
Product Grade [cntrc]	Premium
Maximum Brake Diameter (Discard)	255.000 MM
Maximum Brake Diameter (Discard)	10.039 IN
Bolt Hole Quantity	5
Outside Diameter	313.600 MM
Outside Diameter	12.346 IN
Outer Cooling Fins	No
Mounting Hole Diameter	12.600 MM
Mounting Hole Diameter	0.496 IN
Nominal Drum Diameter	254.000 MM
Nominal Drum Diameter	10.000 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708300050
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
Harmonized Tariff Code (HTS)	8708305030
UPC	805890037057

Part Interchanges

CENTRIC 122.40013 Cross Reference

We have 4 alternatives for the 122.40013 by CENTRIC:

Fits Vehicles

Honda Odyssey (1999-2001)
