Name: Centric 122.33006 Centric Premium Brake Drum
SKU: 12233006
Price: 66.49 USD
Availability: InStock

CENTRIC part description

Product Description

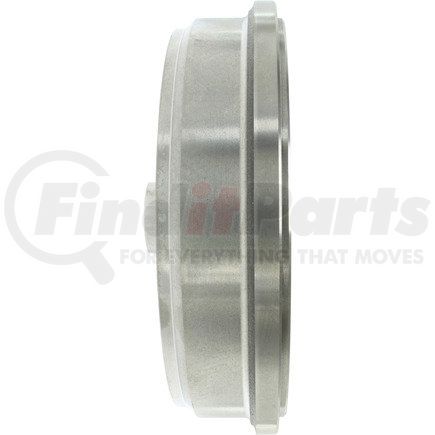

Centric Premium Brake Drum

Features & Benefits

OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise

Product Attributes

Weight [cntrc] Kgs	6.477
Weight [cntrc] Lbs	14.250
Mounting Type [cntrc]	Hub & Drum
Bolt Circle Diameter [cntrc] Mm	130.000
Bolt Circle Diameter [cntrc] In	5.118
Stud Thread Pitch [cntrc] Mm	1.50
Hub Hole / Register [cntrc] Mm	64.800
Hub Hole / Register [cntrc] In	2.551
Height [cntrc] Mm	89.300
Height [cntrc] In	3.516
Friction Surface Width [cntrc] Mm	53.000
Friction Surface Width [cntrc] In	2.087
Product Grade [cntrc]	Premium
Maximum Brake Diameter (Discard)	249.000 MM
Maximum Brake Diameter (Discard)	9.803 IN
Bolt Hole Quantity	4
Outside Diameter	279.000 MM
Outside Diameter	10.984 IN
Outer Cooling Fins	No
Mounting Hole Diameter	14.000 MM
Nominal Drum Diameter	248.100 MM
Nominal Drum Diameter	9.768 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708300050
Harmonized Tariff Code (HTS)	8708305030
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	CN
UPC	805890044369

Part Interchanges

CENTRIC 122.33006 Cross Reference

We have 4 alternatives for the 122.33006 by CENTRIC:

Fits Vehicles

Volkswagen Brasilia (1975-1982)
Volkswagen Super Beetle (1971-1979)
