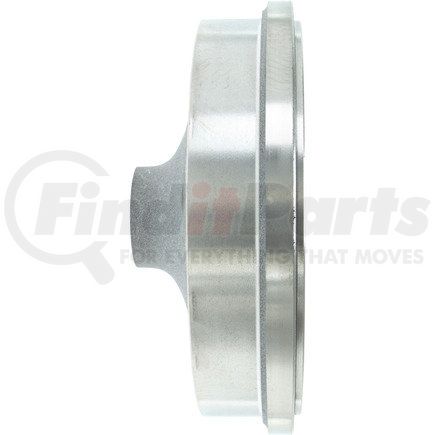

Centric 122.33002 - Centric Premium Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
Product Attributes
| Weight [cntrc] Kgs | 6.136 |
| Weight [cntrc] Lbs | 13.500 |
| Mounting Type [cntrc] | Hub & Drum |
| Bolt Circle Diameter [cntrc] Mm | 196.850 |
| Bolt Circle Diameter [cntrc] In | 7.750 |
| Stud Thread Pitch [cntrc] Mm | 1.50 |
| Hub Hole / Register [cntrc] Mm | 153.000 |
| Hub Hole / Register [cntrc] In | 6.024 |
| Height [cntrc] Mm | 102.630 |
| Height [cntrc] In | 4.041 |
| Friction Surface Width [cntrc] Mm | 48.000 |
| Friction Surface Width [cntrc] In | 1.890 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 231.000 MM |
| Maximum Brake Diameter (Discard) | 9.094 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 262.000 MM |
| Outside Diameter | 10.315 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.000 MM |
| Nominal Drum Diameter | 230.000 MM |
| Nominal Drum Diameter | 9.055 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | IT |
| UPC | 805890031871 |
Part Interchanges
Fits Vehicles
- Volkswagen Karmann Ghia (1958-1964)
- Volkswagen Beetle (1958-1964)
