Centric 121.66054 - C-Tek Standard Brake Rotor
$6699
MSRP: $74.96
Save: $7.97
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

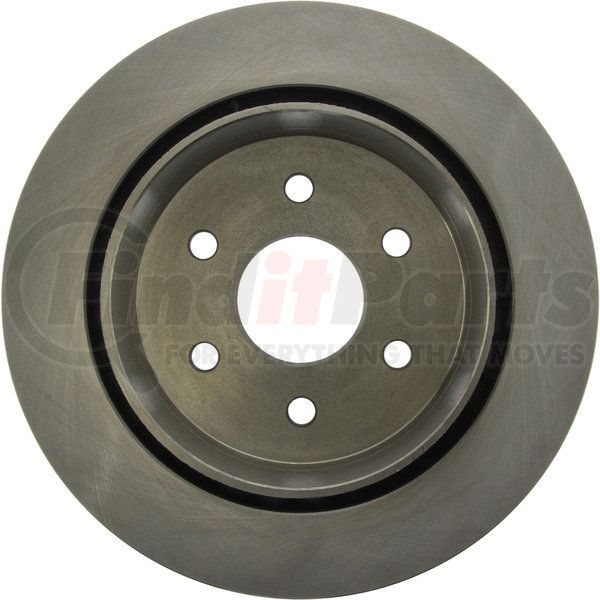

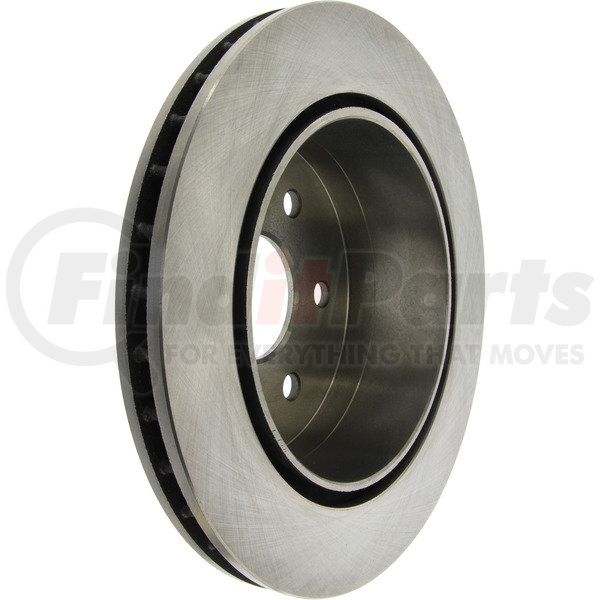

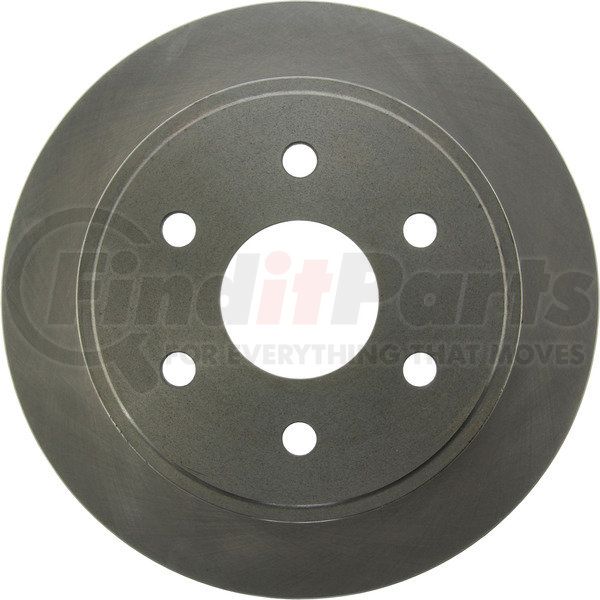

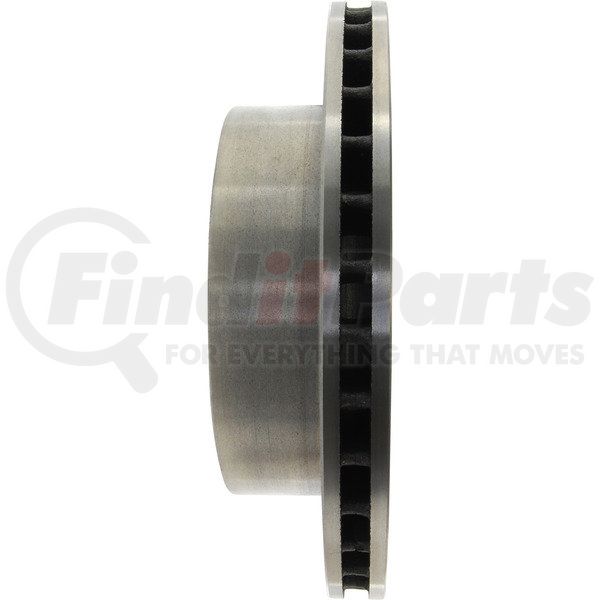

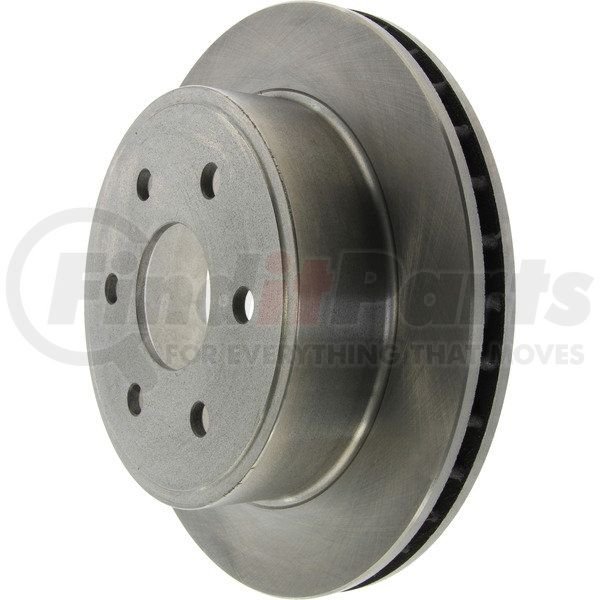

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.360 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 25.000 |
| Product Grade [cntrc] | Standard |
| Discard Thickness | 26.500 MM |
| Discard Thickness | 1.043 IN |
| Nominal Thickness | 1.142 IN |
| Nominal Thickness | 29.000 MM |
| Overall Height | 87.000 MM |
| Overall Height | 3.425 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 205.000 MM |
| Nominal Drum Diameter | 8.071 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.091 IN |
| Center Hole Diameter | 78.500 MM |
| Mounting Bolt Hole Circle Diameter | 140.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.512 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.642 IN |
| Stud/Lug Hole Diameter | 16.300 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890199151 |
Part Interchanges
CENTRIC 121.66054 Cross Reference
We have 2 alternatives for the 121.66054 by CENTRIC:
Fits Vehicles
- GMC Savana 2500 (2003-2006)
- Chevrolet Express 2500 (2003-2006)
