CENTRIC part description

Product Description

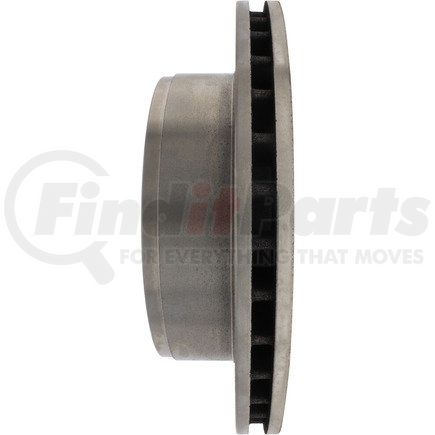

C-Tek Standard Brake Rotor

Features & Benefits

  • Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket

Product Attributes

Disc Mounting [cntrc] Floating / DIH
Misc Holes [cntrc] 0
Weight [cntrc] Lbs 24.000
Product Grade [cntrc] Standard
Vane Style [cntrc] Straight
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs 10.910
Discard Thickness 26.500 MM
Discard Thickness 1.043 IN
Nominal Thickness 1.142 IN
Nominal Thickness 29.000 MM
Overall Height 85.700 MM
Overall Height 3.374 IN
Outside Diameter 330.000 MM
Outside Diameter 12.992 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Nominal Drum Diameter 206.000 MM
Nominal Drum Diameter 8.110 IN
Bearings Included No
Center Hole Diameter 4.630 IN
Center Hole Diameter 117.600 MM
Mounting Bolt Hole Circle Diameter 165.100 MM
Mounting Bolt Hole Circle Diameter 6.500 IN
Stud/Lug Hole Quantity 8
Stud/Lug Hole Diameter 16.500 MM
Stud/Lug Hole Diameter 0.650 IN

Additional Information

Harmonized Tariff Code (HTS) 8708305030
Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 805890159230

Part Interchanges

CENTRIC 121.66043 Cross Reference

We have 7 alternatives for the 121.66043 by CENTRIC:

Fits Vehicles

  • GMC Sierra 1500 (2004)
  • GMC Sierra 2500 (1999-2004)
  • Hummer H2 (2003-2009)
  • GMC Yukon XL 2500 (2000-2007)
  • GMC Sierra 1500 HD (2001-2003, 2005-2006)
  • Chevrolet Silverado 1500 (2004-2005)
  • Chevrolet Avalanche 2500 (2002-2006)
  • Chevrolet Suburban 2500 (2000-2007)
  • GMC Sierra 1500 HD Classic (2007)
  • Chevrolet Silverado 1500 HD Classic (2007)
  • GMC Savana 2500 (2003-2021)
  • GMC Savana 3500 (2004-2019, 2021-2022)
  • Chevrolet Express 3500 (2004-2022)
  • Chevrolet Express 2500 (2003-2009, 2011-2022)
  • Chevrolet Silverado 2500 (1999-2004)
  • Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
