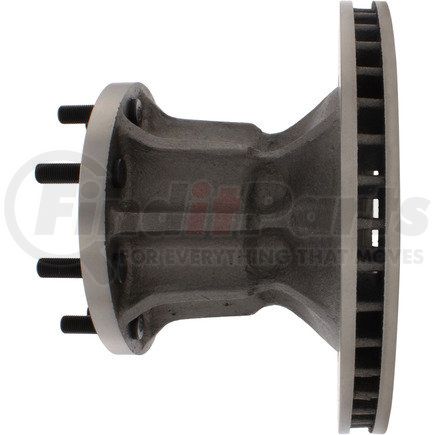

Centric 121.66013 - C-Tek Standard Brake Rotor
$12499
MSRP: $170.86
Save: $45.87
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Product Grade [cntrc] | Standard |
| Weight [cntrc] Lbs | 47.000 |
| Inner Bearing # [cntrc] | 410.91035 |
| Weight [cntrc] Kgs | 21.360 |
| Inner Seal # [cntrc] | 417.66008 |
| Outer Bearing # [cntrc] | 415.66000 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Race # [cntrc] | 416.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.640 MM |
| Nominal Thickness | 1.285 IN |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 207.900 MM |
| Overall Height | 8.185 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 317.500 MM |
| Rotor Outside Diameter | 12.500 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 115.700 MM |
| Center Hole Diameter | 4.555 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890050957 |
Part Interchanges
CENTRIC 121.66013 Cross Reference
We have 4 alternatives for the 121.66013 by CENTRIC:
Fits Vehicles
- Chevrolet C3500 (1988-1989)
- GMC C3500 (1988-1989)
