(888) 312-8812 Login SignupCENTRIC 121.66011 C-Tek Standard Brake Rotor
Tap to view 4 more
$9599
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 6
CENTRIC 121.66011 Part Description
Manufacturer
Product Description

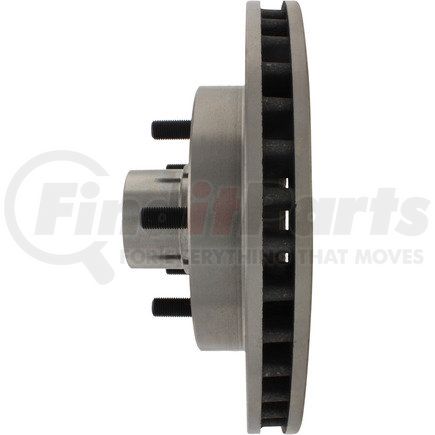

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66011 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Standard |
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Bearing # [cntrc] | 410.91003 |
| Weight [cntrc] Lbs | 27.000 |
| Weight [cntrc] Kgs | 12.270 |
| Inner Seal # [cntrc] | 417.66004 |
| Inner Bearing # [cntrc] | 410.91005 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.500 MM |
| Nominal Thickness | 1.280 IN |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 114.500 MM |
| Overall Height | 4.508 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 295.000 MM |
| Rotor Outside Diameter | 11.614 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 77.700 MM |
| Center Hole Diameter | 3.059 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890050933 |
CENTRIC 121.66011 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | BD61815, 52-125205, 52-61815, 5261815, 52125205, BD125205, BD125205E, E125-71-016, E126-71-016, 5594, BR5571, BR5594, R93 700, 64 93 700, 5571, 5594G, 107244, 15589446, 15649249, 15649951, 15981315, 19195844, PRT1830, 141488, 141830, 101710, 101940, 101940E, 86004, 4886004, 571, AR8611, AR8611E, D17377, D17543, E12571016, E12671016, E9229, 121.66011, C6002, 5594DSR, 5594DSL, YH141830, X50362, X50655, 27065, BR1534, 8004, 8004R, 8004RGS, 108004, 108004R, ZAR8611E, 19796, 8944011, 78-44011, 7844011, 78944011, 65380, 18A296, 177707, 60048010 |
CENTRIC 121.66011 Fits Vehicles
- Chevrolet C1500 (1988-1994)
- GMC C1500 (1988-1994)
CENTRIC 121.66011 Cross References
