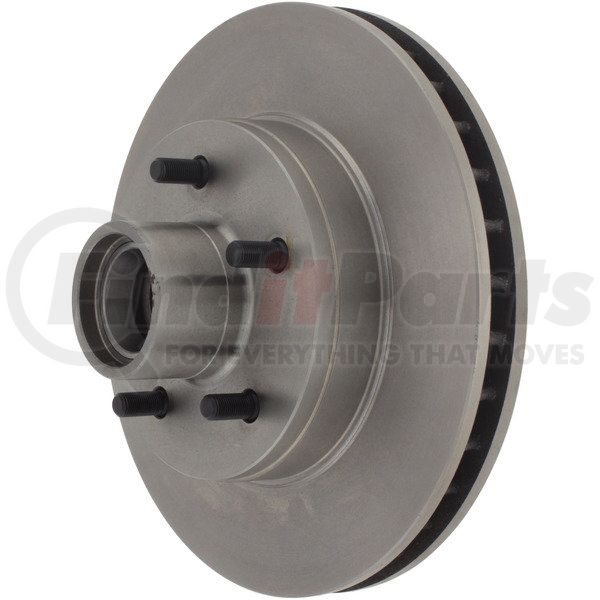

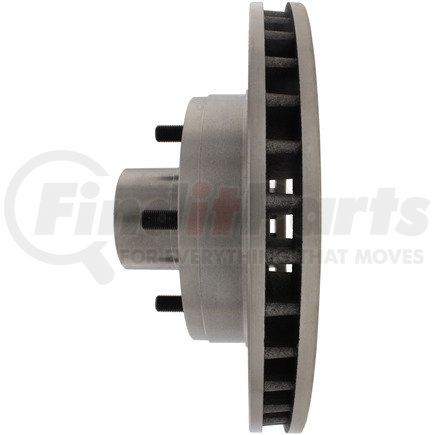

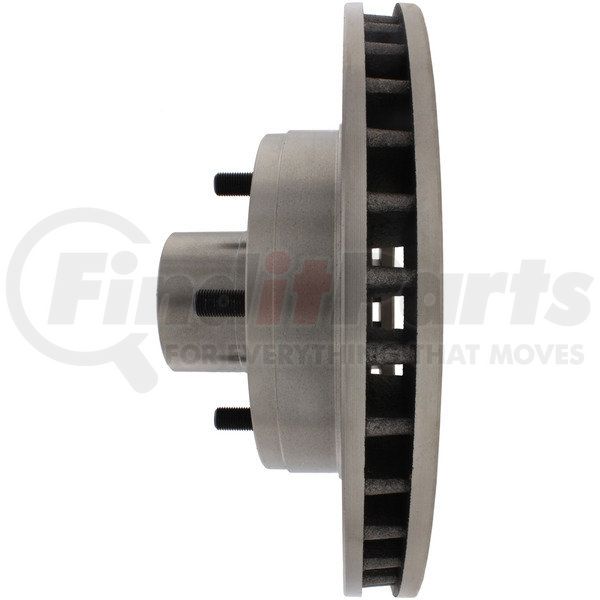

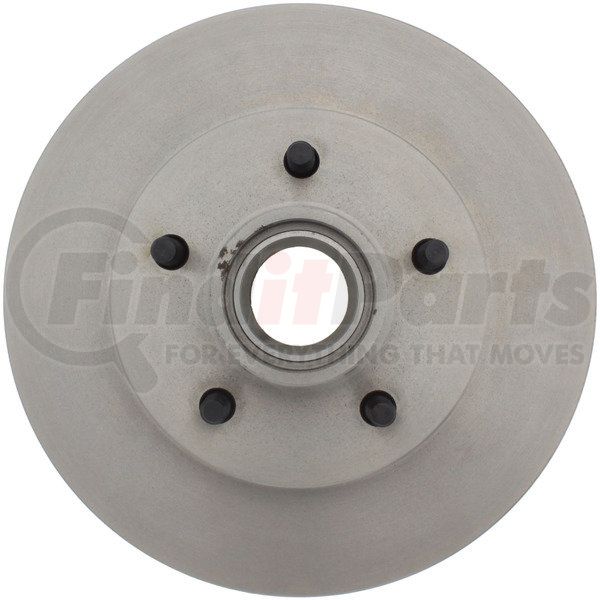

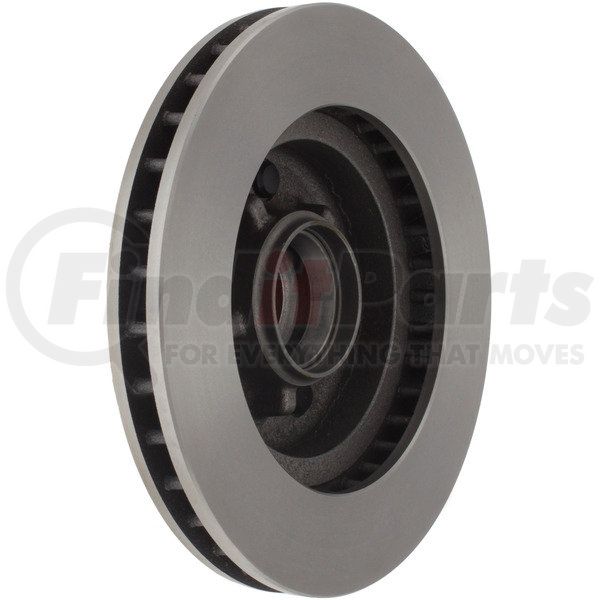

CENTRIC 121.66007 Part Description
Manufacturer
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 121.66007 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Outer Bearing # [cntrc] | 415.66006 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 29.400 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Bearing # [cntrc] | 410.91035 |
| Weight [cntrc] Kgs | 13.360 |
| Outer Race # [cntrc] | 416.63003 |
| Product Grade [cntrc] | Standard |
| Inner Seal # [cntrc] | 417.66000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 30.860 MM |
| Discard Thickness | 1.215 IN |
| Nominal Thickness | 32.640 MM |
| Nominal Thickness | 1.285 IN |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 125.300 MM |
| Overall Height | 4.933 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Rotor Outside Diameter | 301.200 MM |
| Rotor Outside Diameter | 11.858 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 77.300 MM |
| Center Hole Diameter | 3.043 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890075615 |
CENTRIC 121.66007 Cross References
| Brand | Part Number |
|---|---|
| 5011, BD60729 | |
| MAGMA PRODUCTS | PMR225175 |
| N/A | BD60729, E126-71-012, 5565, BR5565, 5565G, 14054932, 15667752, PRT1391, 141391, 101650, 85835, 4885835, 622, AR8607, AR8607E, D5011, E8424, E12671012, 3988527, 210312, X50361, 27372, BR1410, 5011, 5011R, 8944007, 78944007, 60048006, 177801 |
| RAYBESTOS | 5011, 5011R |
CENTRIC 121.66007 Fits Vehicles
- Chevrolet G20 (1983-1992)
- GMC G2500 (1983-1992)
- Chevrolet Suburban (1987, 1990-1991)
