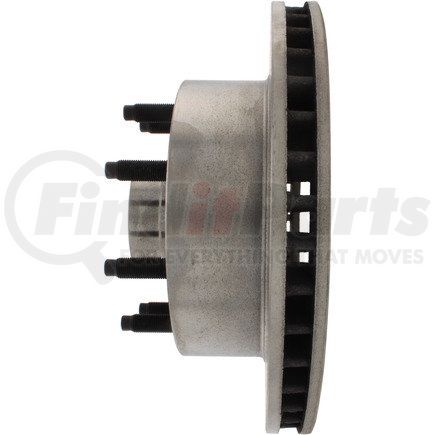

Centric 121.65005 - C-Tek Standard Brake Rotor
$9849
MSRP: $121.18
Save: $22.69
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Weight [cntrc] Lbs | 36.900 |
| Inner Bearing # [cntrc] | 415.68004 |
| Inner Seal # [cntrc] | 417.65008 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Outer Race # [cntrc] | 416.68001 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Standard |
| Vane Style [cntrc] | Straight |
| Outer Bearing # [cntrc] | 415.68002 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Kgs | 16.770 |
| Inner Race # [cntrc] | 416.68003 |
| Discard Thickness | 29.970 MM |
| Discard Thickness | 1.180 IN |
| Nominal Thickness | 31.620 MM |
| Nominal Thickness | 1.245 IN |
| Stud Thread Diameter | 0.563 IN |
| Overall Height | 130.600 MM |
| Overall Height | 5.142 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 319.000 MM |
| Rotor Outside Diameter | 12.559 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 18.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 96.800 MM |
| Center Hole Diameter | 3.811 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890050339 |
Part Interchanges
CENTRIC 121.65005 Cross Reference
We have 3 alternatives for the 121.65005 by CENTRIC:
Fits Vehicles
- Ford F-350 (1976-1979)
- Ford E-350 Econoline Club Wagon (1977-1980)
- Ford E-350 Econoline (1975-1980)
