MPA ELECTRICAL part description

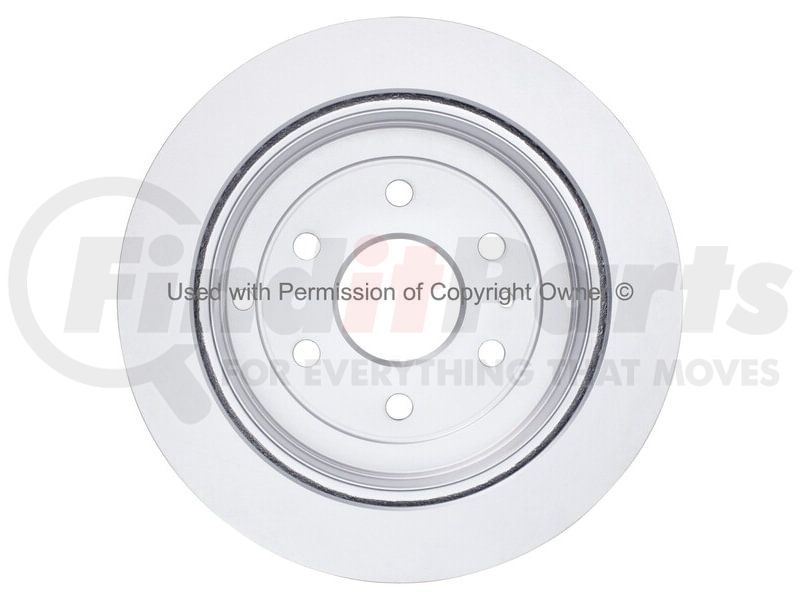

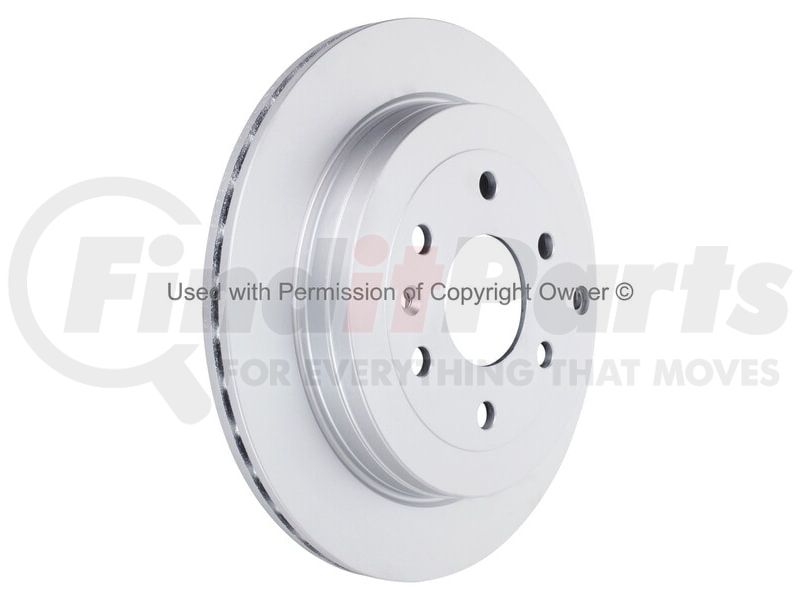

Quality-Built Disc Brake Rotor - Black Series, Coated

Product Description

Quality-Built Black Series Coated Rotor

Application Summary

Buick Enclave 2017-2008, Chevrolet Traverse 2017-2009, GMC Acadia 2016-2007, Saturn Outlook 2010-2007

Features & Benefits

  • OE Style Symmetric Vane Designs
  • Non-directional friction surfaces
  • Precision machined mounting surfaces
  • Installation-ready without cleaning
  • Q-Shield Protective Coatings
  • High-Carbon Metullargy
  • G11H18 Alloys
  • Mill balanced
  • Straddle Cut to eliminate DTV

Black Series Brake Rotor, Brake Rotor, MPA Brake Rotot, Quality-Built Brake Rotor, Coated Rotor, Black Coated Rotor

Product Attributes

Finish Coated
Product Condition New
Discard Thickness 18.4 MM
Discard Thickness 0.7 IN
Nominal Thickness 20.0 MM
Nominal Thickness 0.8 IN
Disc Finish Coated
Hat Finish Coated
Rust Resistant Coating Yes
Outside Diameter 331.0 MM
Outside Diameter 13.0 IN
Grade Type Regular
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 75.5 MM
Mounting Bolt Hole Circle Diameter 132.0 MM
Mounting Bolt Hole Circle Diameter 5.197 IN
Mounting Bolt Hole Diameter 0.638 IN
Mounting Bolt Hole Diameter 16.2 MM
Stud/Lug Hole Quantity 6

Additional Information

Harmonized Tariff Code (HTS) 8708305030
Harmonized Tariff Code (Schedule B) 8708300050
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 00190037432759

Fits Vehicles

  • Chevrolet Traverse (2009-2017)
  • Buick Enclave (2008-2017)
  • Saturn Outlook (2007-2010)
  • GMC Acadia (2007-2016)
