(888) 312-8812 Login SignupCENTRIC 120.85003 Centric Premium Brake Rotor
Tap to view 4 more
MSRP: $212.47
$17599
Save $36.48
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 20
CENTRIC 120.85003 Part Description
Manufacturer
Product Description

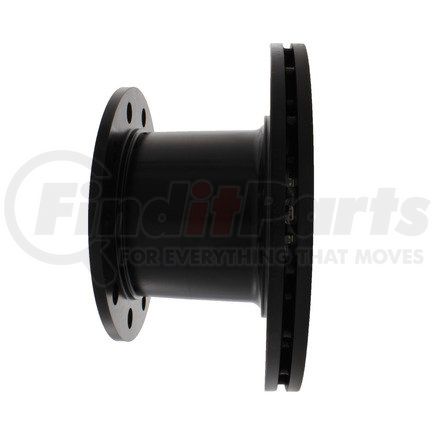

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.85003 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Notes [cntrc] | U Shaped, Tapped for ABS Ring |
| Weight [cntrc] Kgs | 19.550 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Lbs | 43.000 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 25.400 MM |
| Discard Thickness | 1.000 IN |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Overall Height | 6.043 IN |
| Overall Height | 153.500 MM |
| Outside Diameter | 299.800 MM |
| Outside Diameter | 11.803 IN |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 118.100 MM |
| Center Hole Diameter | 4.650 IN |
| Mounting Bolt Hole Circle Diameter | 184.400 MM |
| Mounting Bolt Hole Circle Diameter | 7.260 IN |
| Mounting Bolt Hole Diameter | 17.400 MM |
| Mounting Bolt Hole Diameter | 0.685 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890272250 |
CENTRIC 120.85003 Cross References
CENTRIC 120.85003 Fits Vehicles
- Workhorse Custom Chassis W42 (2006-2008)
- Workhorse W42 (2006-2011)
