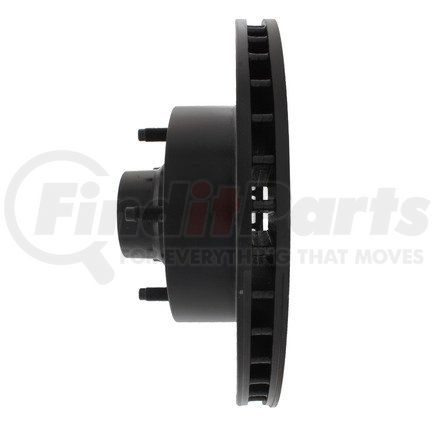

CENTRIC 120.67055 Part Description
Manufacturer
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.67055 Specifications
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 14.550 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Inner Bearing # [cntrc] | 410.91018 |
| Inner Seal # [cntrc] | 417.67004 |
| Weight [cntrc] Lbs | 32.000 |
| Outer Bearing # [cntrc] | 410.91016 |
| Discard Thickness | 28.400 MM |
| Discard Thickness | 1.118 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 125.600 MM |
| Overall Height | 4.945 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 323.000 MM |
| Rotor Outside Diameter | 12.717 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 89.800 MM |
| Center Hole Diameter | 3.535 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890136705 |
CENTRIC 120.67055 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 780224, 780224R |
| N/A | BD126047, E125-72-060, 43316, 414AB, 43089, 27378, 43089G, 52009414AB, 53017, 60040096, E12572060 |
CENTRIC 120.67055 Fits Vehicles
- Dodge Ram 1500 Van (2003)
CENTRIC 120.67055 Cross References
We have 4 alternatives for the 120.67055 by CENTRIC:
