CENTRIC 120.66063 Part Description
Manufacturer
Product Description

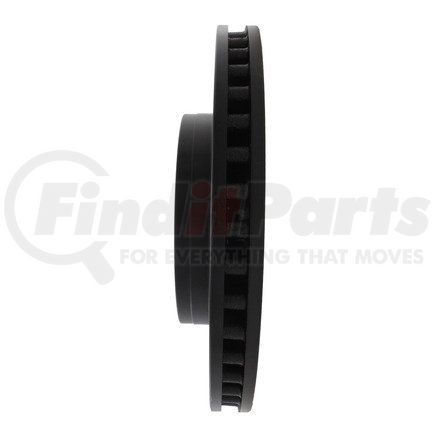

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.66063 Specifications
Product Attributes
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 9.050 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 19.900 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.083 IN |
| Discard Thickness | 27.500 MM |
| Nominal Thickness | 1.146 IN |
| Nominal Thickness | 29.100 MM |
| Hat Finish | Coated |
| Overall Height | 2.154 IN |
| Overall Height | 54.700 MM |
| Outside Diameter | 302.000 MM |
| Outside Diameter | 11.890 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.118 IN |
| Center Hole Diameter | 79.200 MM |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.520 IN |
| Stud/Lug Hole Diameter | 13.200 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890239420 |
CENTRIC 120.66063 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 580359, 580359FZN, 580359PER, 580359R |
| Neotek Premium Drums and Rotors | 1072037GF |
| N/A | 120.66063, 0833328, BD126446, BD126446E, E125-71-068, BR5511202, 211646, 55112, YH145602, 1407-80293, 55112G, 25826102, 21998532, 8219985320, 880359, 2055112, 18A1756A, 1771007, 90048052, E12571068, 55112HC |
CENTRIC 120.66063 Fits Vehicles
- Buick Rainier (2006-2007)
- Chevrolet SSR (2006)
- Isuzu Ascender (2007-2008)
- Chevrolet Trailblazer (2006-2009)
- GMC Envoy (2006-2009)
