CENTRIC 120.66036 Part Description
Manufacturer
Product Description

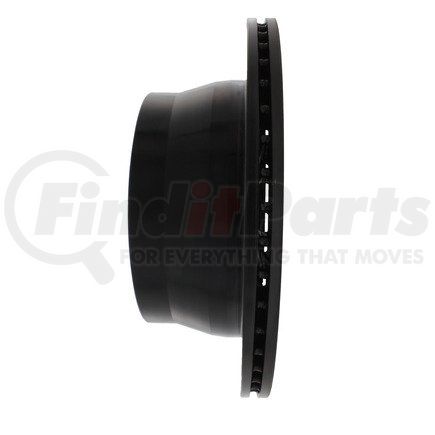

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.66036 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Max Pb Drum Dia [cntrc] In | 7.539 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 7.270 |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 16.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] Mm | 191.500 |
| Discard Thickness | 18.500 MM |
| Discard Thickness | 0.728 IN |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20.000 MM |
| Hat Finish | Coated |
| Overall Height | 95.000 MM |
| Overall Height | 3.740 IN |
| Outside Diameter | 295.000 MM |
| Outside Diameter | 11.614 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 190.100 MM |
| Nominal Drum Diameter | 7.484 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.700 MM |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.200 MM |
| Stud/Lug Hole Diameter | 0.520 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890036203 |
CENTRIC 120.66036 Cross References
| Brand | Part Number |
|---|---|
| 56707, BD125505 | |
| N/A | BD125505, BD125505E, E125-71-041, BR5503802, 6493140, 55038, 55038G, 107256, 15704667, 19241873, 8157046670, 145180, 86707, 4886707, AR8636, E12571041, 55038HC, 120.66036, 55038DSR, YH145180, 55038DSL, 1407-25659, X51230, 27186, 2055038, 19924, 8944036, 90048032, 177843, 18A875, 18A875A |
| NEOTEK | 107256GF |
| Neotek Premium Drums and Rotors | 107256GF |
| PRONTO | BR5503802 |
| RAYBESTOS | 56707, 56707FZN, 56707R |
| Raybestos Brakes | 56707, 56707FZN, 56707R |
| WAGNER | BD125505E, BD125505 |
CENTRIC 120.66036 Fits Vehicles
- Oldsmobile Bravada (1997-2001)
- GMC Sonoma (1998-2003)
- GMC Jimmy (1997-2001, 2004-2005)
- Chevrolet S10 (1998-2004)
- Chevrolet Blazer (1997-2005)
- Isuzu Hombre (1998-2000)
