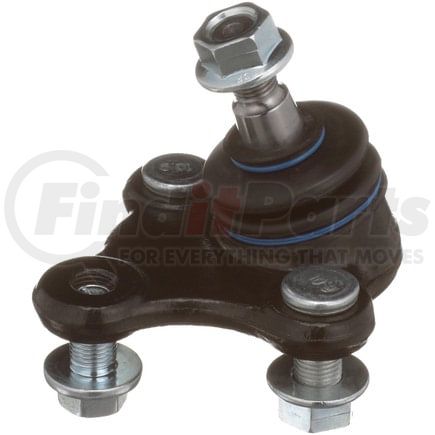

Delphi TC6815 - Ball Joint
$2099
In stock
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Left Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Width | 98 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 0.827 IN |
| Mounting Bolt Length | 21.00 MM |
| Washers Included | No |
| Height | 3.543 IN |
| Height | 90.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.807 IN |
| Stud Thread Length | 20.5 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 43.90 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.827 IN |
| Mounting Bolt Thread Length | 21.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.673 IN |
| Stud Tapered End 2 Diameter | 17.1 MM |
| 9213 | 0.591 IN |
| Stud Tapered End 1 Diameter | 15 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 4.090 IN |
| Length | 104.00 MM |
| Stud Thread Diameter | 0.47 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604377154 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Kia Forte5 (2021)
- Kia Forte (2019-2023)
- Hyundai Kona (2018-2023)
- Hyundai Elantra GT (2018-2020)
- Hyundai Elantra (2017-2020)
