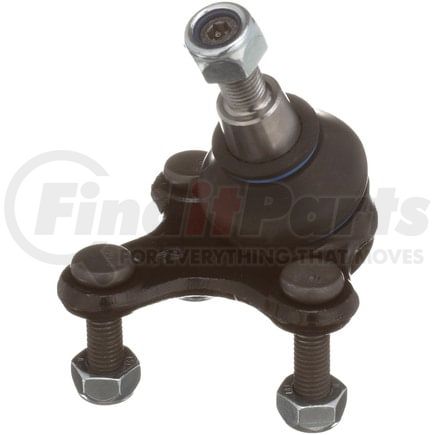

Delphi TC6782 - Ball Joint
$2349
In stock
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Left |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Width | 92 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.260 IN |
| Mounting Bolt Length | 32.00 MM |
| Washers Included | No |
| Height | 4.331 IN |
| Height | 110.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.984 IN |
| Stud Thread Length | 25 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 44.20 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| 9207 | 1.260 IN |
| Mounting Bolt Thread Length | 32.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.906 IN |
| Stud Tapered End 2 Diameter | 23 MM |
| 9213 | 0.709 IN |
| Stud Tapered End 1 Diameter | 18 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 996.00 MM |
| Length | 39.210 IN |
| Stud Thread Diameter | 0.47 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604377109 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Volkswagen Atlas Cross Sport (2020-2023)
- Volkswagen Atlas (2018-2023)
