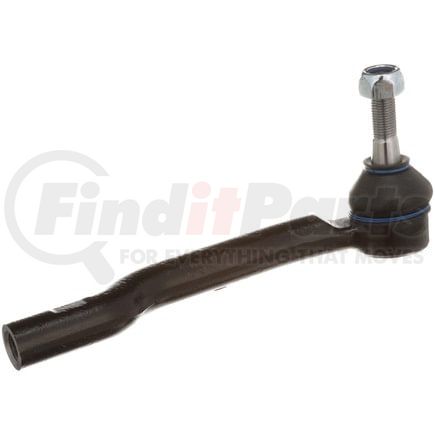

Name: Delphi TA3370 Tie Rod End
SKU: ta3370
Price: 24.49 USD
Availability: InStock

DELPHI part description

Tie Rod End

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Length	195.00 MM
Color	Black
End 1 Gender	Female
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	42 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	12.00 MM
Height	90.00 MM
Housing Material	Steel
Adjustable	Yes
Greasable	No
Weight	1.49 lb
662	0.492 IN
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 2 Thread Pitch	1.25 MM
End 1 Thread Pitch	1.5 MM
Length Stud Center to End	7.677 IN
Length Stud Center to End	195.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	14.00 MM
Shank Length	0.492 IN
Stud Length	12.50 MM
Grade Type	Standard
Boot Color	Black
Cone Outside Diameter	12.50 MM
Grade	Premium
Shank Length	12.50 MM
Stud Length	0.492 IN
End 2 Thread Diameter	0.472 IN
End 1 Thread Diameter	0.551 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708948000
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604377024
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Suzuki Kizashi (2010-2013)
