FRAM part description

CARTRIDGE OIL FILTER DEFENSE

Product Description

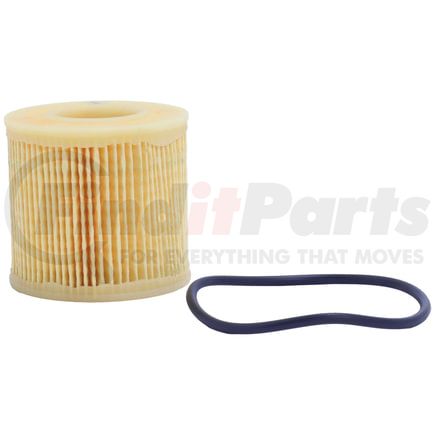

Defense Filters, DL10358, Oil Filters

Cartridge Oil Filter

Product Attributes

Anti-Drain Back Valve No
Bypass Relief Valve No
Filter Media Material Cellulose/Synthetic Blend
Filter Type Cartridge
Grade Advanced
Grade Type Regular
Height 2.244 IN
Inside Diameter Bottom 1.102 IN
Meets Or Exceeds Original Equipment Manufacturer Specifications Yes
Non Slip Grip No
O-ring Inside Diameter 2.756 IN
O-ring Outside Diameter 2.892 IN
O-ring Thickness 0.136 IN
O-Rings Included Yes
Outer Diameter Bottom 2.394 in
Outer Diameter Top 2.394 in
Replacable Filter Yes
Reusable No
Top Inside Diameter 1.102 in
Torque Nut No
Washable No

Additional Information

Warranty Special See Rep
Warranty Special UOM SR
Warranty Time 30
Warranty Time UOM DA
Country of Origin (Primary) AR
Harmonized Tariff Code (HTS) 8421230000
UPC 00009100559395
UNSPSC 15121501

Part Interchanges

Fits Vehicles

  • Suzuki Aerio (2002)
  • Toyota C-HR (2018-2022)
  • Toyota Prius Prime (2017-2020)
  • Toyota Corolla iM (2017-2018)
  • Toyota Prius Plug-In (2012-2015)
  • Scion iM (2016)
  • Toyota Prius V (2012-2018)
  • Lexus CT200h (2011-2017)
  • Toyota Prius (2010-2020)
  • Pontiac Vibe (2009-2010)
  • Toyota Matrix (2009-2014)
  • Toyota Corolla (2009-2018)
  • Scion xD (2008-2014)

FRAM® is all-set to "Filter out the Nonsense." With an origin that dates back to 1932, this brand has been globally recognized as the filter authority for its world-class filtering solutions that offer maximum engine protection, unparalleled filtering performance, and superior dirt-holding capacity. FRAM provides the industry with first-rate air filters, oil filters, heavy-duty commercial filters that help keep engines running efficiently, the way a well-filtered machine should. Among FRAM's popular products are the FRAM Extra Guard air filter, Fresh Breeze cabin air filter, Titanium oil filter, heavy-duty hydraulic, coolant, or fuel filters, and many others. Whether you are a fleet manager, a seasoned mechanic, or an experienced do-it-yourselfer, FRAM will provide you with filters that deliver efficiency, quality, reliability, performance, and durability at competitive prices.
