(888) 312-8812 Login SignupCENTRIC 120.65117 Centric Premium Brake Rotor
Tap to view 4 more
MSRP: $377.85
$35199
Save $25.86
Limited availability at this price!
In Stock
Get it by Thursday, Jan 29
CENTRIC 120.65117 Part Description
Manufacturer
Product Description

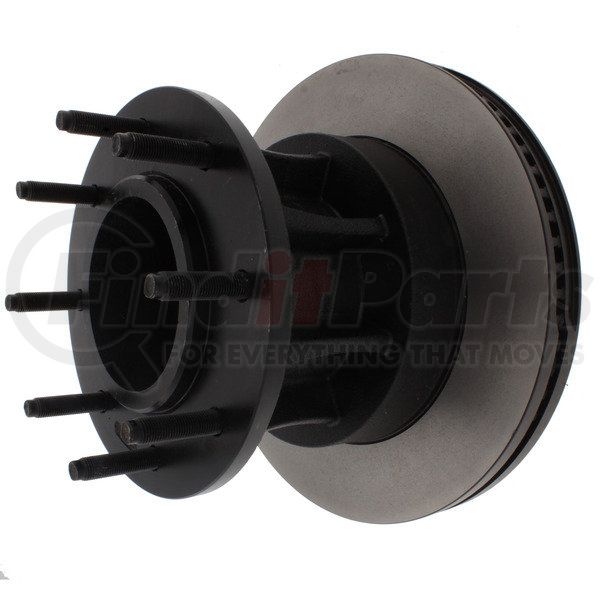

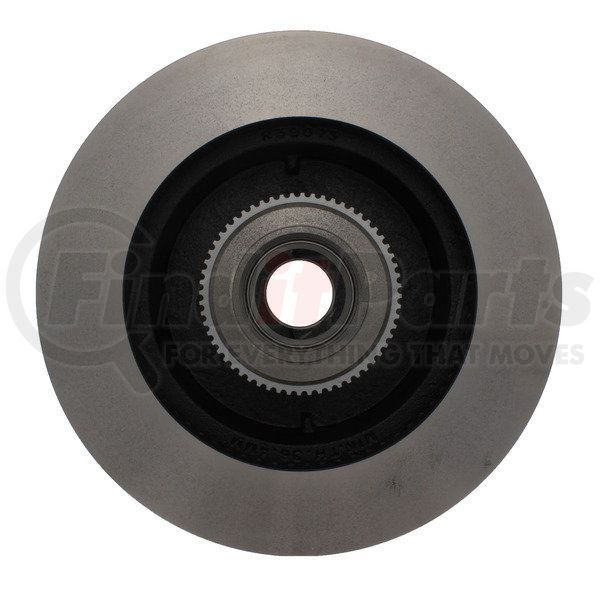

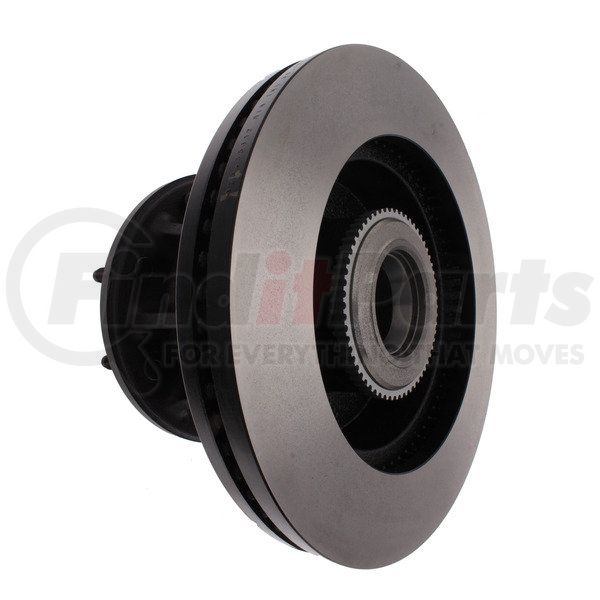

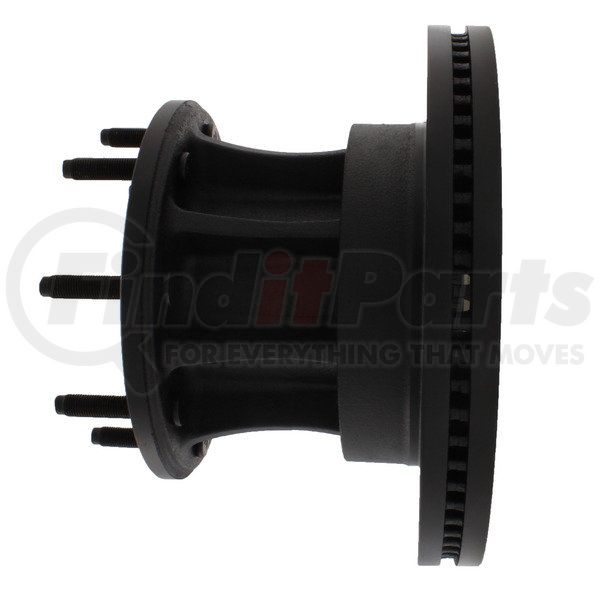

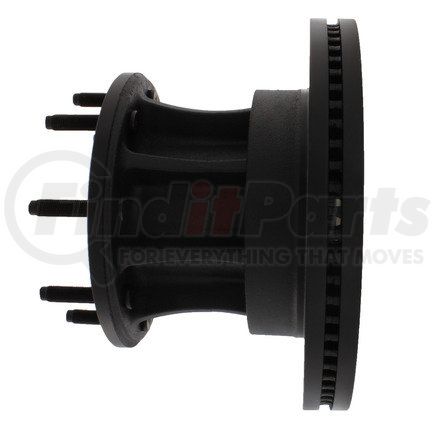

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.65117 Specifications
Product Attributes
| Weight [cntrc] Lbs | 71.450 |
| Outer Bearing # [cntrc] | 415.68002 |
| Inner Bearing # [cntrc] | 415.68004 |
| Weight [cntrc] Kgs | 32.480 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Outer Race # [cntrc] | 416.68001 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Inner Race # [cntrc] | 416.68003 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Inner Seal # [cntrc] | 417.65003 |
| Discard Thickness | 36.400 MM |
| Discard Thickness | 1.433 IN |
| Nominal Thickness | 38.000 MM |
| Nominal Thickness | 1.496 IN |
| Hat Finish | Coated |
| Stud Thread Diameter | 14.000 MM |
| Overall Height | 213.000 MM |
| Overall Height | 8.386 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| Rotor Outside Diameter | 347.000 MM |
| Rotor Outside Diameter | 13.661 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 1.500 MM |
| Bearings Included | No |
| Center Hole Diameter | 142.000 MM |
| Center Hole Diameter | 5.591 IN |
| Mounting Bolt Hole Circle Diameter | 200.000 MM |
| Mounting Bolt Hole Circle Diameter | 7.874 IN |
| Stud/Lug Hole Quantity | 8 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890237297 |
CENTRIC 120.65117 Cross References
CENTRIC 120.65117 Fits Vehicles
- Ford F-350 Super Duty (2005-2007)
