CENTRIC 120.65085 Part Description
Manufacturer
Product Description

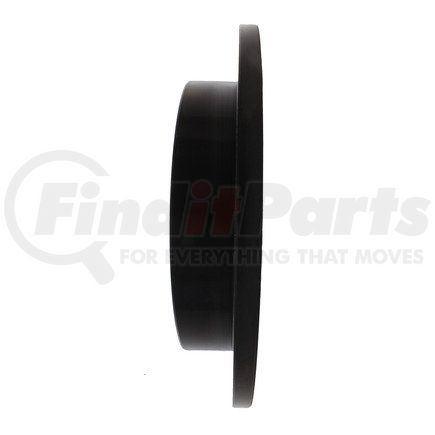

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.65085 Specifications
Product Attributes
| Weight [cntrc] Lbs | 19.000 |
| Max Pb Drum Dia [cntrc] Mm | 230.000 |
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 8.640 |
| Disc Mounting [cntrc] | Floating / DIH |
| Max Pb Drum Dia [cntrc] In | 9.055 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.472 IN |
| Discard Thickness | 12.000 MM |
| Nominal Thickness | 0.559 IN |
| Nominal Thickness | 14.200 MM |
| Hat Finish | Coated |
| Overall Height | 56.300 MM |
| Overall Height | 2.217 IN |
| Outside Diameter | 334.000 MM |
| Outside Diameter | 13.150 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 228.400 MM |
| Nominal Drum Diameter | 8.992 IN |
| Bearings Included | No |
| Center Hole Diameter | 3.445 IN |
| Center Hole Diameter | 87.500 MM |
| Mounting Bolt Hole Circle Diameter | 135.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.315 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.000 MM |
| Stud/Lug Hole Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890016540 |
CENTRIC 120.65085 Cross References
| Brand | Part Number |
|---|---|
| 66947, BD125752 | |
| N/A | BD125752, BD125752E, E125-70-090, BR5409002, 6492355, 54090, 54090G, YL1Z2C026AA, YL3Z2C026AA, XL3Z2C026AA, 2U2Z1V125AA, 2U2Z1V125AB, 145299, 102631, 86947, 4886947, AR8582, E12570090, 54090HC, 120.65085, 54090GT, 128475, 2539805, XL14BYL14A, XL342C026C, 1407-25649, YH145299, X51361, 27145, 66947P, 19910, 90054173 |
| NEOTEK | 1071005GF |
| Neotek Premium Drums and Rotors | 1071005GF |
| PRONTO | BR5409002 |
| RAYBESTOS | 66947, 66947FZN, 66947R, 66947R2 |
| Raybestos Brakes | 66947, 66947FZN, 66947R |
| WAGNER | BD125752E, BD125752 |
CENTRIC 120.65085 Fits Vehicles
- Lincoln Navigator (2000-2002)
- Lincoln Blackwood (2002)
- Ford F-150 Heritage (2004)
- Ford F-150 (2000-2003)
- Ford Expedition (1999-2002)
