Centric 120.65064 - Centric Premium Brake Rotor
$12449
MSRP: $157.78
Save: $33.29
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

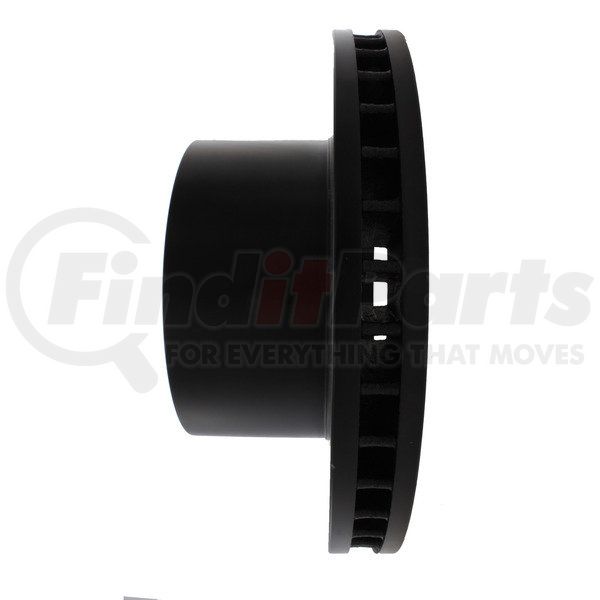

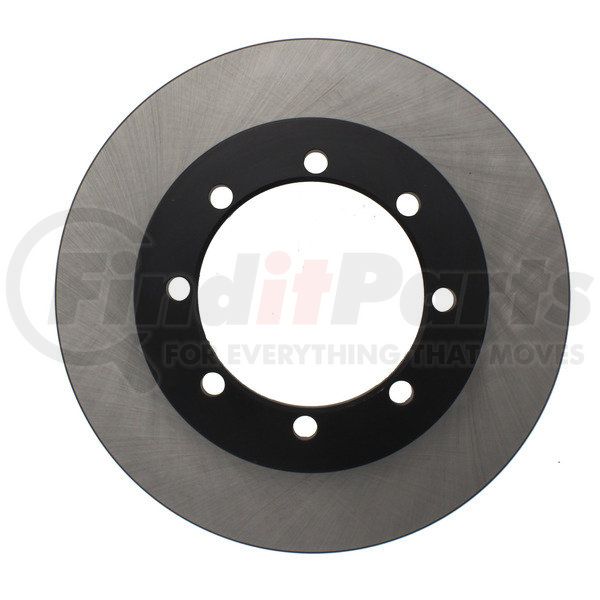

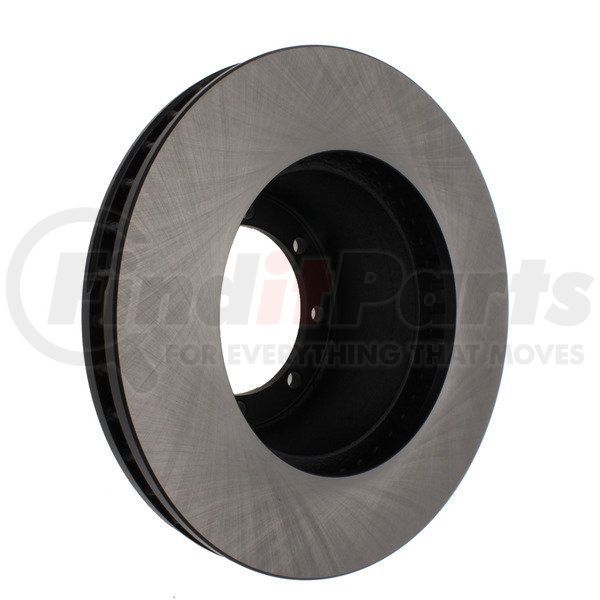

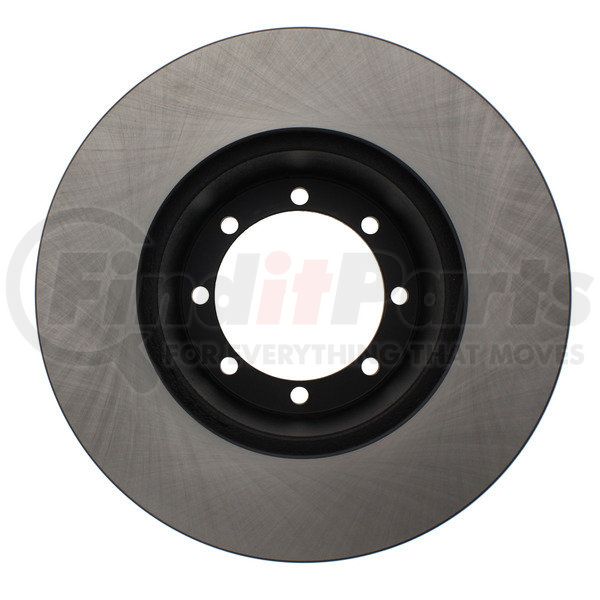

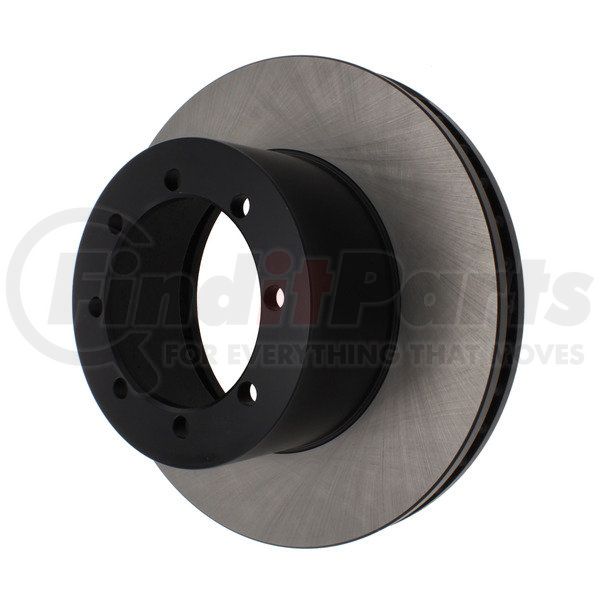

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Kgs | 14.550 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 32.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 36.300 MM |
| Discard Thickness | 1.429 IN |
| Nominal Thickness | 38.100 MM |
| Nominal Thickness | 1.500 IN |
| Hat Finish | Coated |
| Overall Height | 123.800 MM |
| Overall Height | 4.874 IN |
| Outside Diameter | 327.700 MM |
| Outside Diameter | 12.902 IN |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 4.850 IN |
| Center Hole Diameter | 123.200 MM |
| Mounting Bolt Hole Circle Diameter | 145.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.709 IN |
| Mounting Bolt Hole Diameter | 12.900 MM |
| Mounting Bolt Hole Diameter | 0.508 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890035985 |
Part Interchanges
- Euclid E12332
- Bendix 145162
- Meritor D4858
- Raybestos Brakes 66695
- Raybestos Brakes 66695FZN
- Raybestos Brakes 66695R
- WAGNER BD125550
- Neotek Premium Drums and Rotors 1071065GF
- BD125550
- E125-70-069
- 54053
- BRRF107
- 54053G
- F6US1113AA
- F6UZ2C026AA
- YC2Z1V125AA
- 4886695
- 86653
- 86695
- AR8564
- E12570069
- 211119
- YH145162
- 1407-25410
- X51329
- 27262
- 8942064
- 78942064
- 60054154
CENTRIC 120.65064 Cross Reference
We have 14 alternatives for the 120.65064 by CENTRIC:
Fits Vehicles
- Ford Econoline Super Duty (1996-1999)
- Ford E-450 Super Duty (2003-2007)
- Ford E-450 Econoline Super Duty (2000-2002)
