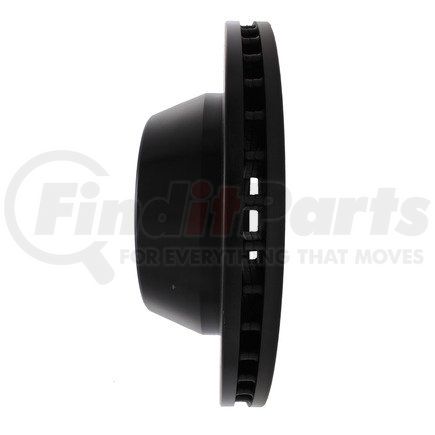

Centric 120.65006 - Centric Premium Brake Rotor
$8549
MSRP: $109.02
Save: $23.53
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 10.590 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 23.300 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30.000 MM |
| Nominal Thickness | 1.256 IN |
| Nominal Thickness | 31.900 MM |
| Hat Finish | Coated |
| Overall Height | 93.200 MM |
| Overall Height | 3.669 IN |
| Outside Diameter | 319.100 MM |
| Outside Diameter | 12.563 IN |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.583 IN |
| Center Hole Diameter | 91.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Mounting Bolt Hole Diameter | 13.600 MM |
| Mounting Bolt Hole Diameter | 0.535 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| UPC | 805890043140 |
Part Interchanges
- Raybestos Brakes 6050R
- BD60468
- E125-70-011
- 153141505
- 6492520
- 64 11 040
- 64 92 520
- 6411040
- 5457
- 107117
- 5457G
- D6TZ1102D
- D6TZ1111A
- E0TZ1102D
- E0TZ1102L
- F4UA1102EA
- F4UZ1102E
- F4UZ1102F
- E4TZ1102A
- E6TZ1102D
- E7TZ1102D
- YC3Z1V125BA
- 141505
- 4885637
- 85555
- 85567
- 85637
- 591
- AR8506
- D6050
- E8434
- E12570011
- 120.65006
- 69110346
- YH141505
- 27151
- X50413
- BR1526
- 6050
- 8942006
- 65145
- 60054102
CENTRIC 120.65006 Cross Reference
We have 3 alternatives for the 120.65006 by CENTRIC:
Fits Vehicles
- Ford F-350 (1976-1994)
- Ford E-350 Econoline Club Wagon (1977-1994)
- Ford E-350 Econoline (1975-1994)
