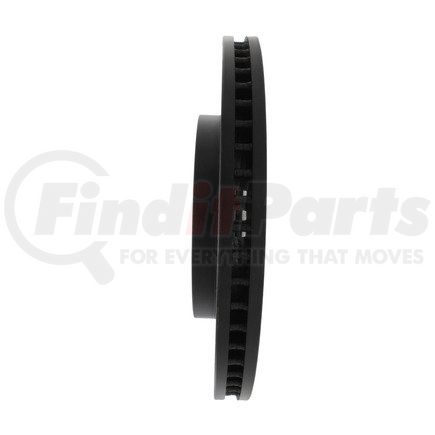

Centric 120.63058 - Centric Premium Brake Rotor
$7599
MSRP: $105.44
Save: $29.45
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 20.000 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 9.090 |
| Discard Thickness | 1.043 IN |
| Discard Thickness | 26.500 MM |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Hat Finish | Coated |
| Overall Height | 47.500 MM |
| Overall Height | 1.870 IN |
| Outside Diameter | 318.000 MM |
| Outside Diameter | 12.520 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 82.000 MM |
| Center Hole Diameter | 3.228 IN |
| Mounting Bolt Hole Circle Diameter | 5.000 IN |
| Mounting Bolt Hole Circle Diameter | 127.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.400 MM |
| Stud/Lug Hole Diameter | 0.606 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890194460 |
Part Interchanges
CENTRIC 120.63058 Cross Reference
We have 6 alternatives for the 120.63058 by CENTRIC:
Fits Vehicles
- Chrysler Pacifica (2004-2008)
