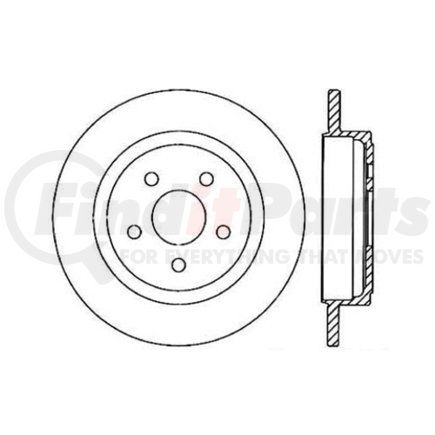

Centric 120.63032 - Centric Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Misc Holes [cntrc] | 0 |
| Max Pb Drum Dia [cntrc] In | 6.819 |
| Weight [cntrc] Lbs | 12.000 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 173.200 |
| Weight [cntrc] Kgs | 5.450 |
| Discard Thickness | 10.950 MM |
| Discard Thickness | 0.431 IN |
| Nominal Thickness | 0.475 IN |
| Nominal Thickness | 12.070 MM |
| Hat Finish | Coated |
| Overall Height | 2.142 IN |
| Overall Height | 54.400 MM |
| Outside Diameter | 270.000 MM |
| Outside Diameter | 10.630 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 172.000 MM |
| Nominal Drum Diameter | 6.772 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.268 IN |
| Center Hole Diameter | 57.600 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.551 IN |
| Stud/Lug Hole Diameter | 14.000 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890035800 |
Part Interchanges
Fits Vehicles
- Dodge Shadow (1989)
- Dodge Lancer (1985-1987)
