Rancho RS77405 - Rancho RS7MT RS77405 Steering Damper
$8949
In stock
limited availability at this price!
. Learn more
RANCHO part description
Product Description

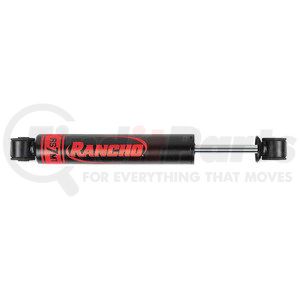

RS7MT Steering Damper
Features & Benefits
- IMPROVES HANDLING AND PERFORMANCE?--?Reduces wheel shimmy, bump steer and vibration?which helps minimize on- or off-road driver fatigue
- ACCOMMODATES LARGER TIRES?--?Engineered for vehicles with oversized wheels and tires
- STRONG AND DURABLE -- Features a 14mm hardened chrome piston rod to resist scuffs and corrosion, double-welded loops at stress areas, double-strength closure method, and hot form reserve tube
- HANDLES EXTREME TEMPERATURE CHANGES?-- Monotube gas design filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40?to?248degF
- THE RIGHT FIT -- Designed to fit right out of the box, application-specific mounting installs easily with no need for installing sleeves or extra hardware
- KEEPS DIRT AND DEBRIS OUT -- Sealing system with integrated dirt wiper helps keep moisture, dirt and debris from being ingested into the shock and contaminating the oil and destroying the internal seal
- BUILT TO LAST -- Large 46mm fluon-banded piston for consistent sealing between the piston and monotube for precise control, ride and handling; for extra protection, shock boot RS1952 and RS1961 are available for purchase
- BOLD APPEARANCE -- Black satin finish with distinctive Rancho red logo for an eye-catching look that stands out
- BUY WITH CONFIDENCE --?Comes with Rancho's Limited Lifetime Warranty
Product Attributes
| Compressed Length | 13.62 IN |
| Travel Length | 7.88 in |
| 1183 | 14 MM |
| Color | Black |
| Finish | Painted |
| Internal Construction Type | Single Tube |
| Grade Type | Performance |
| Extended Length | 21.5 in |
| Boot Included | No |
| Gas Charged | Yes |
| Body Diameter | 1.97 IN |
| Adjustable Damping | No |
| Dust Shield Included | No |
| 9801 | 46 MM |
| Body Length | 13.11 IN |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Lower Mount Code | L1 |
| Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
| Part Description | Steering Damper |
| Parts Pack(s) | 17111242, 17111243 |
| Type | Telescopic |
| Upper Mount Code | S4 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
Additional Information
| Country of Origin (Primary) | PL |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | 01164 |
| UPC | 00039703012348 |
| VMRS Code | 015004022 |
| UNSPSC | 25174202 |
Fits Vehicles
- Jeep Gladiator (2020-2022)
- Jeep Wrangler JK (2018)
- Jeep Wrangler (2007-2023)
- Ford F-250 Super Duty (2005-2020)
- Ford F-350 Super Duty (2005-2020)
- Ford F-350 (1979)
- Ford F-250 (1977-1979)
All shocks are built to take the pressure, but not all are as tough as a Rancho®. For more than half a century, Rancho has been the leading authority on heavy duty suspension solutions for off-road applications. Rancho shocks have built-in features not found in other competing shocks, including extra-thick pistons and piston rods, multi-stage valving technology, and protective boot, for flexible performance in any terrain without compromising durability. They also offer premium lifting and leveling assemblies that are easy to install and improve ride quality significantly without extensive modifications to the vehicle. All Rancho shocks are tested and certified to comply with international quality and safety standards.
