CENTRIC 120.61078 Part Description
Manufacturer
Product Description

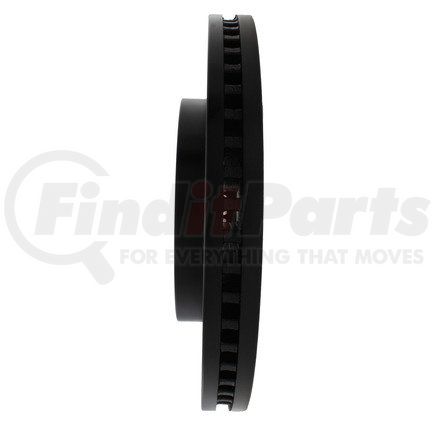

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.61078 Specifications
Product Attributes
| Misc Holes [cntrc] | 5 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 19.500 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.860 |
| Discard Thickness | 1.118 IN |
| Discard Thickness | 28.400 MM |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30.000 MM |
| Hat Finish | Coated |
| Overall Height | 1.890 IN |
| Overall Height | 48.000 MM |
| Outside Diameter | 293.000 MM |
| Outside Diameter | 11.535 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 71.000 MM |
| Center Hole Diameter | 2.795 IN |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Diameter | 0.579 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890330523 |
CENTRIC 120.61078 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 680190, 680190FZN, 680190R |
| Neotek Premium Drums and Rotors | 1071023GF |
| N/A | 120.61078, BD126122, BD126122E, E125-66-083, 6F231125, 155790, 137505, YH145473, 54118, 27317, 54118G, 6F2Z1125A, 3F2Z1125AA, 5U2Z1V125C, 145473, 880190, 2054118, 19350, AR85101, 90054086, E12566083 |
CENTRIC 120.61078 Fits Vehicles
- Mercury Monterey (2004-2007)
- Ford Freestar (2004-2007)
CENTRIC 120.61078 Cross References
We have 6 alternatives for the 120.61078 by CENTRIC:
