(888) 312-8812 Login SignupCENTRIC 120.49009 Centric Premium Brake Rotor
Tap to view 4 more
$7799
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
CENTRIC 120.49009 Part Description
Manufacturer
Product Description

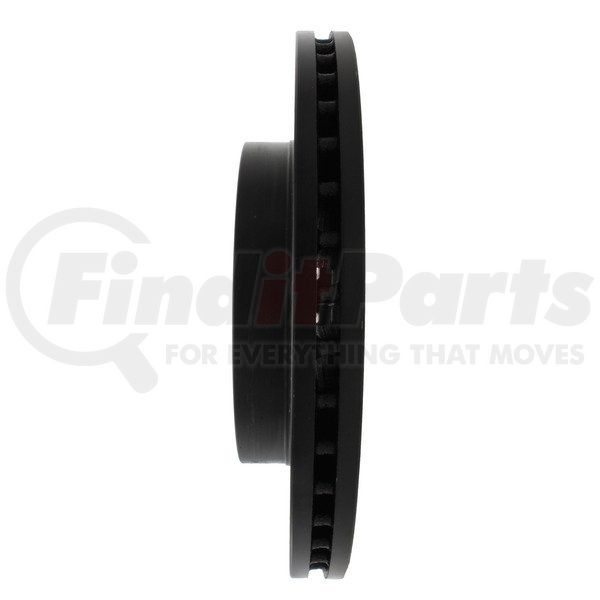

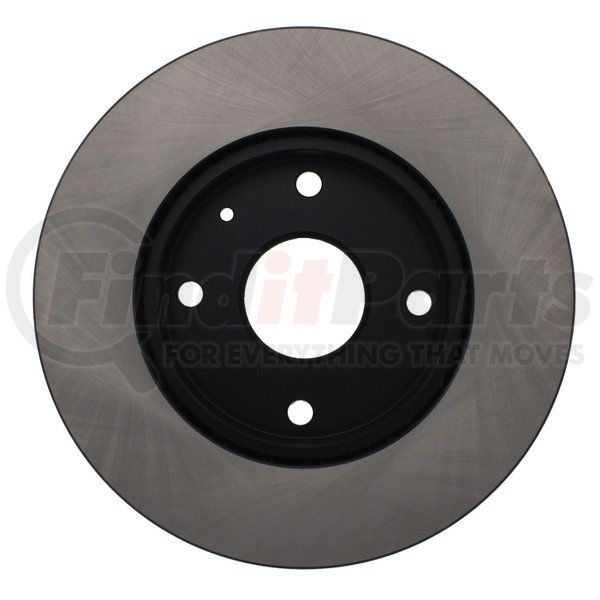

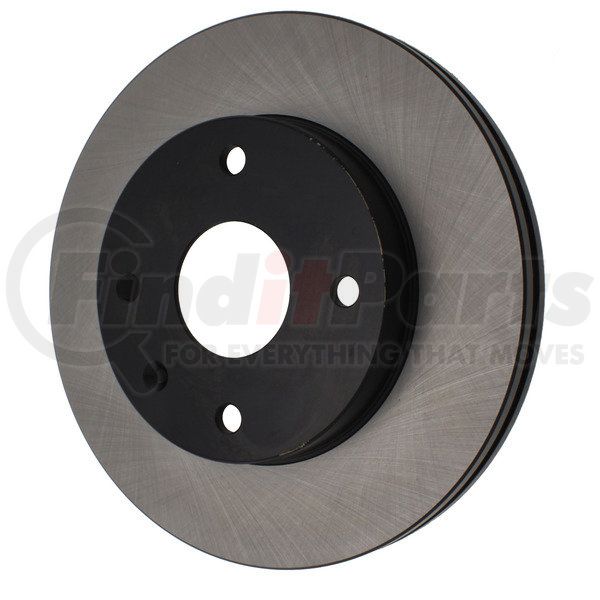

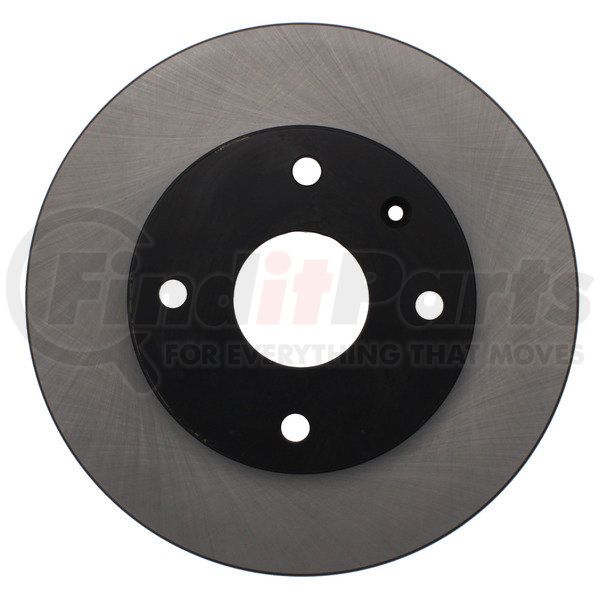

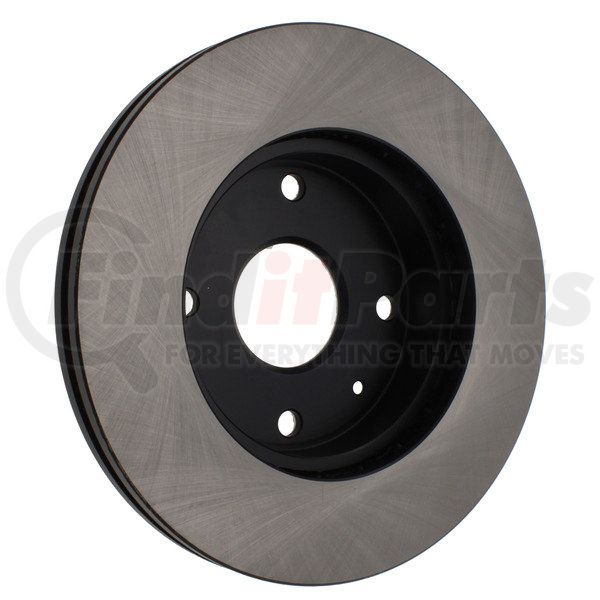

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
CENTRIC 120.49009 Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 5.450 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 12.000 |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22.000 MM |
| Nominal Thickness | 0.941 IN |
| Nominal Thickness | 23.900 MM |
| Hat Finish | Coated |
| Overall Height | 47.300 MM |
| Overall Height | 1.862 IN |
| Outside Diameter | 256.000 MM |
| Outside Diameter | 10.079 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.370 IN |
| Center Hole Diameter | 60.200 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 0.496 IN |
| Stud/Lug Hole Diameter | 12.600 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890301233 |
CENTRIC 120.49009 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980338, 980338FZN, 980338R |
| Neotek Premium Drums and Rotors | 106515GF |
| N/A | FR09093, BD126314, 424199, 31390, YH145612, 27312, 31390G, 5531185Z00, 5531185Z10, 24537780, 96264591, 96328338, 96549782, 48880338, 880338, DDF1257, DF7218, 90001010 |
CENTRIC 120.49009 Fits Vehicles
- Chevrolet Optra (2004-2010)
- Suzuki Reno (2005-2008)
- Suzuki Forenza (2004-2008)
- Chevrolet Epica (2009)
CENTRIC 120.49009 Cross References
We have 6 alternatives for the 120.49009 by CENTRIC:
