CENTRIC 120.44143 Part Description
Manufacturer
Product Description

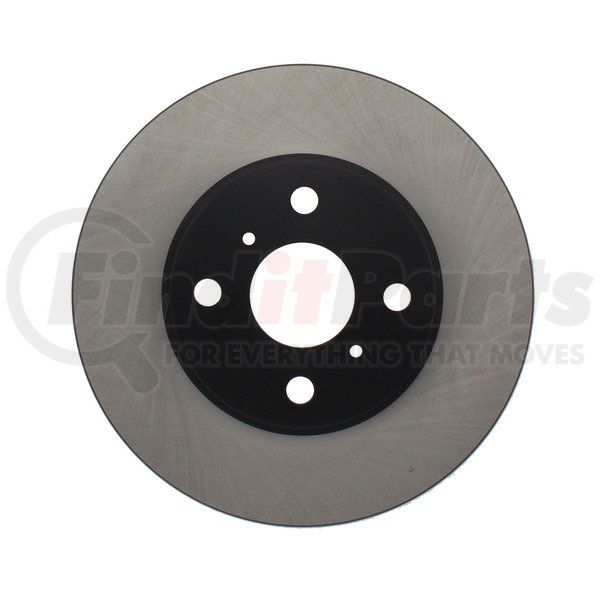

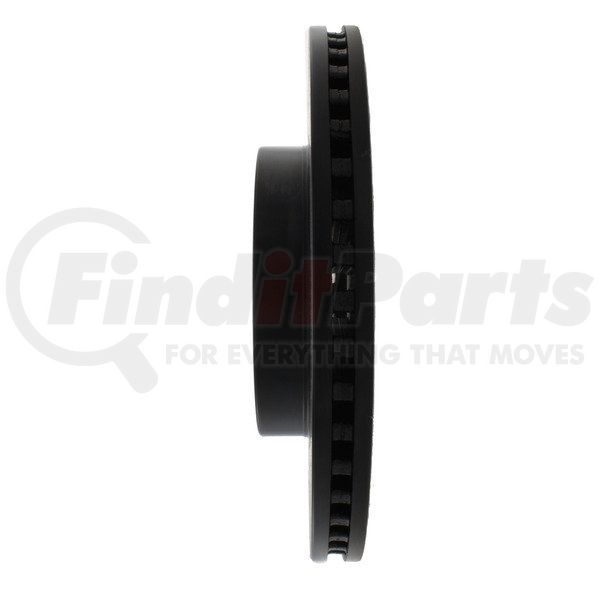

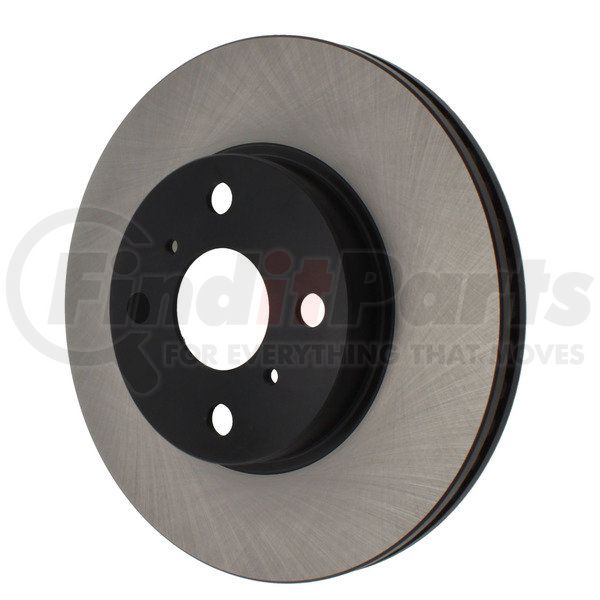

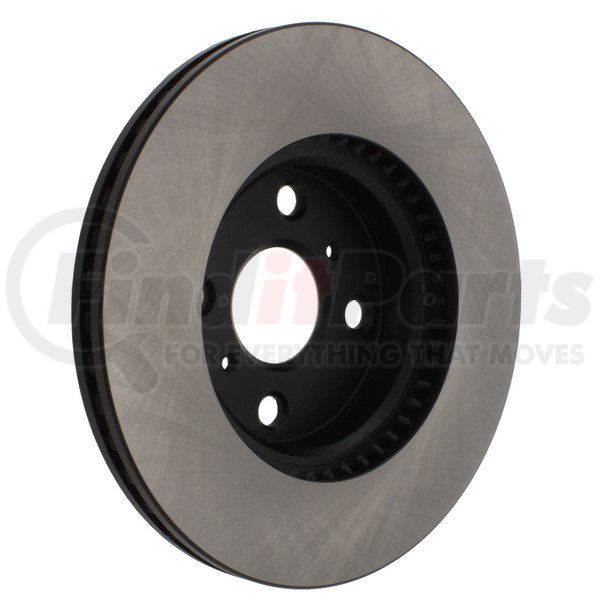

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
- Painted hat and outer edge for corrosion resistance
- Symmetric vane; split-core castings for uniform heat distribution. Anti-corrosive paint protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life.
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 120.44143 Specifications
Product Attributes
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 11.250 |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] Mm | 130.800 |
| Vane Style [cntrc] | Straight |
| Hat Id [cntrc] In | 5.150 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.110 |
| Discard Thickness | 19.000 MM |
| Discard Thickness | 0.748 IN |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Hat Finish | Painted |
| Overall Height | 1.823 IN |
| Overall Height | 46.300 MM |
| Outside Diameter | 255.100 MM |
| Outside Diameter | 10.043 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 55.000 MM |
| Center Hole Diameter | 2.165 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 0.571 IN |
| Stud/Lug Hole Diameter | 14.500 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00805890290759 |
CENTRIC 120.44143 Cross References
| Brand | Part Number |
|---|---|
| 980476, BD126409 | |
| ADVICS | A6F010U |
| N/A | 120.44143, BD126409, BD126409E, BR90034802, 44579, YH145710, 44579G, 43512-0D190, 435120D190, 4351252120, 435120D090, 980476, 48880476, 31439, DDF1779, 2031439, DF4806, 90076078 |
| NEOTEK | 1063029GF |
| Neotek Premium Drums and Rotors | 1063029GF |
| PRONTO | BR90034802 |
| RAYBESTOS | 980476FZN, 980476R, 980476R2 |
| Raybestos Brakes | 980476FZN, 980476R |
| WAGNER | BD126409, BD126409E |
CENTRIC 120.44143 Fits Vehicles
- Scion iQ (2013)
- Toyota Prius C (2012-2021)
- Toyota Yaris (2006-2018)
