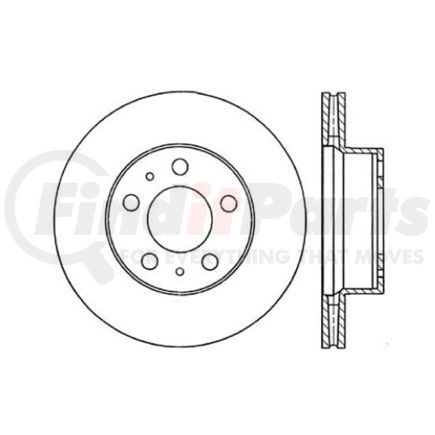

Centric 120.39005 - Centric Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 13.860 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 6.300 |
| Discard Thickness | 22.800 MM |
| Discard Thickness | 0.898 IN |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24.000 MM |
| Hat Finish | Coated |
| Overall Height | 64.300 MM |
| Overall Height | 2.531 IN |
| Outside Diameter | 263.500 MM |
| Outside Diameter | 10.374 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 68.200 MM |
| Center Hole Diameter | 2.685 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.500 MM |
| Stud/Lug Hole Diameter | 0.650 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890031086 |
Part Interchanges
- Raybestos Brakes 96100
- Raybestos Brakes 96100R
- 0831198
- BD60581
- 64 21 130
- 6421130
- 34027
- 34027G
- 270738
- 2707381
- 2707388
- 1229349
- 12293494
- 1205781
- 12057816
- 1229344
- PRT1407
- PRT5503
- 145503
- 141407
- 144453
- 4886100
- 86100
- 299
- EBR081
- D9266
- 1.6005.2.4
- 1600524
- VV051V
- YH141407
- 25226
- X50824
- BR1403
- DDF163
- 142662
- 90027004
CENTRIC 120.39005 Cross Reference
We have 4 alternatives for the 120.39005 by CENTRIC:
