NGK Spark Plugs 90526 - NGK Laser Iridium Spark Plug
- Part Number
- 90526
- Manufacturer
- NGK SPARK PLUGS
- Description
-

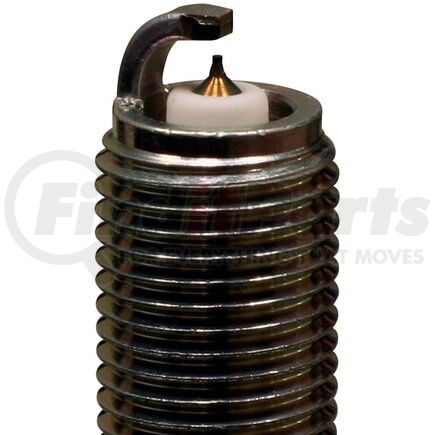

NGK Laser Iridium Spark Plug
details
$1599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NGK SPARK PLUGS part description
Spark Plug
Product Description
NGK Laser Iridium Spark Plug
Features & Benefits
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire iridium alloy center electrode provides consistent performance
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire iridium alloy plugs
Product Attributes
| Stock Number | 90526 |
| Part Number | LMAR9AI-8D |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Copper |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 14 MM |
| Insulator Height | 51.00 MM |
| Manufacturer Heat Range | 9 |
| Seat Type | Flat |
| Reach | 26.5 MM |
| Thread Diameter | 10.00 MM |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| 9459 | No |
| 9506 | 0.08 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Mid Projection |
| Short Style Spark Plug | No |
| Service Number | LMAR9AI-8D |
| Washer Included | Yes |
| Grade Type | Performance |
| Hex Size | 14mm |
| Insulator Height | 2.01 IN |
| Reach | 1.043 IN |
| Thread Diameter | 0.394 IN |
| Insulator Material | Ceramic |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295905265 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Husqvarna FX450 (2020)
- Husqvarna FX350 (2020)
- Husqvarna FC450 (2020)
- Husqvarna FC350 (2020)
- Ski-Doo Renegade X-RS ACE 900 Turbo (2019)
- Ski-Doo Renegade X ACE 900 Turbo (2019)
- Ski-Doo Renegade Enduro ACE 900 Turbo (2019)
- Ski-Doo Renegade Adrenaline ACE 900 Turbo (2019)
- Ski-Doo Grand Touring Limited ACE 900 Turbo (2019)
- Can-Am Maverick X3 X rc Turbo R (2018-2019)
- Can-Am Maverick X3 X rc Turbo (2018-2019)
- Can-Am Maverick X3 X mr Turbo R (2018-2019)
- Can-Am Maverick X3 X mr Turbo (2018-2019)
- Can-Am Maverick X3 Turbo (2018-2019)
- Can-Am Maverick X3 Max X rs Turbo R (2018-2019)
- Can-Am Maverick X3 Max X ds Turbo R (2018-2019)
- Can-Am Maverick X3 Max Turbo R (2017-2019)
- Can-Am Maverick X3 Max Turbo (2018-2019)
- Can-Am Maverick X3 Turbo R (2017-2019)
- Can-Am Maverick X3 X ds Turbo R (2017-2019)
- Can-Am Maverick X3 X rs Turbo R (2017-2019)
- KTM 350 XCF-W Six Days (2016)
- KTM 450 SX-F Factory Edition (2016)
- KTM 450 XC-F (2016-2019)
- KTM 450 SX-F (2016-2019)
- Husqvarna FE350S (2016)
- Husqvarna FE350 (2014-2016)
- KTM 250 XC-F (2014-2019)
- KTM 250 SX-F (2014-2019)
- Husaberg FE350 (2013-2014)
- KTM 350 XCF-W (2012-2016)
- KTM 350 XC-F (2012-2019)
- KTM 350 EXC-F (2012-2016)
- KTM 350 SX-F (2011-2019)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
