Centric 120.20021 - Centric Premium Brake Rotor
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

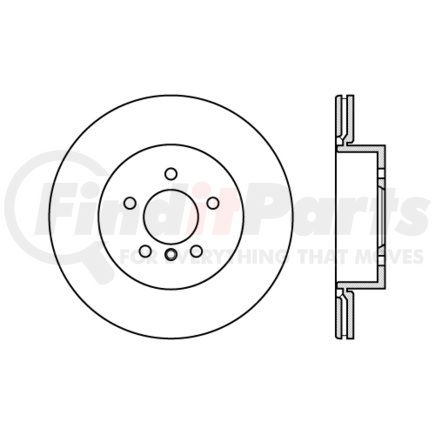

Centric Premium Brake Rotor
Features & Benefits
- Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life
Product Attributes
| Misc Holes [cntrc] | 1 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 21.000 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Kgs | 9.550 |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Hat Finish | Coated |
| Overall Height | 66.000 MM |
| Overall Height | 2.598 IN |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 179.700 MM |
| Nominal Drum Diameter | 7.075 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.894 IN |
| Center Hole Diameter | 73.500 MM |
| Mounting Bolt Hole Circle Diameter | 120.700 MM |
| Mounting Bolt Hole Circle Diameter | 4.752 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.524 IN |
| Stud/Lug Hole Diameter | 13.300 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890197140 |
Part Interchanges
Fits Vehicles
- Jaguar XJR (2002-2003)
- Jaguar Vanden Plas (2002-2003)
- Jaguar XKR (2000-2006)
