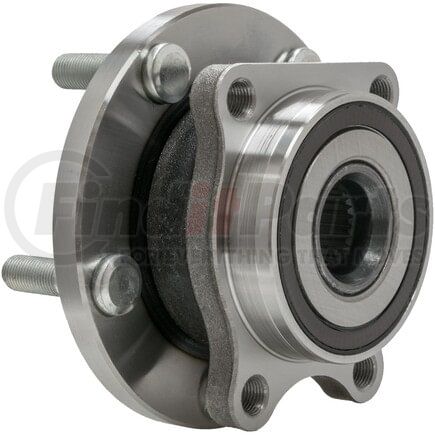

MPA Electrical WH590316 - Wheel Bearing and Hub Assembly
- Part Number
- WH590316
- Manufacturer
- MPA ELECTRICAL
- Description
-
Wheel Bearing and Hub Assembly
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MPA ELECTRICAL part description
Product Description
Wheel Bearing and Hub Assembly
Application Summary
Subaru Ascent 2019, Forester 2020-2019, Impreza 2014-2004, Legacy 2020-2015, Outback 2020-2015, WRX STI 2014-2013
Features & Benefits
- Premium, high-carbon steel alloys improve load bearing capabilities and strength.
- Induction hardened, micro-finished races improve bearing durability and load capacity.
- Application-specific ABS sensors included for perfect vehicle control system signaling.
Product Attributes
| Gasket or Seal Included | Yes |
| Material | Steel |
| Greaseable | No |
| Flange Diameter Inch | 5.436 |
| Spline Quantity | 27 |
| Stud Quantity | 5 |
| Wheel Stud Size MM | M12 x 1.25 |
| Product Condition | New |
| Wiring Harness Included | No |
| Hub Pilot Diameter Inch | 3.305 |
| Spline Quantity | 27 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Studs Included | Yes |
| Flange Shape | Trapezoid |
| Anti Lock Braking System Type | Tone Ring |
| Anti Lock Brake Sensor Included | No |
| Flange Offset | 1.828 IN |
| Flange Diameter | 5.436 IN |
| 9555 | 4.500 IN |
| 9555 | 114.3 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708995800 |
| UPC | 00029175945824 |
Part Interchanges
Fits Vehicles
- Subaru Forester (2019-2020)
- Subaru Ascent (2019)
- Subaru Outback (2015-2020)
- Subaru Legacy (2015-2020)
- Subaru WRX STI (2013-2014)
- Subaru Impreza (2004-2014)
