SPICER 5-677X Part Description
Manufacturer
Product Description

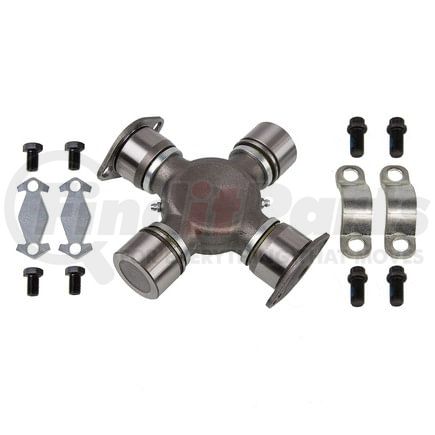

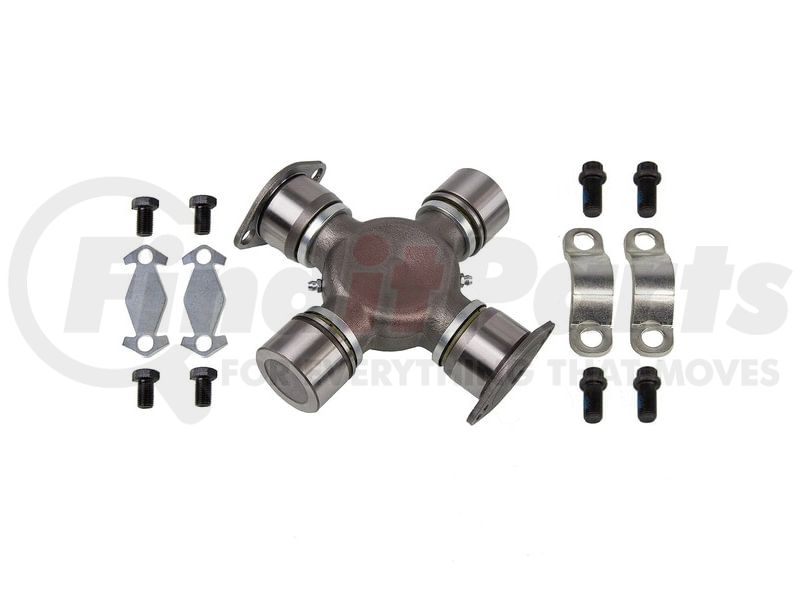

Universal Joint Greaseable; Spicer 1760 Series Half Round
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature
U - JOINT KIT *D
SPICER 5-677X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (2) | 1.938 IN |
| Distance Between Bolts (1) | 2.437 IN |
| Bearing Cap Type | Bearing Plate X Round |
| Grease Zerk Included | Yes |
| Pre Greased | No |
| Grease Fitting Location | side of Cross |
| Greaseable | Yes |
| Bearing Cap Diameter A (mm) | 49.225 MM |
| Type | HR Style |
| OEM Series | 1760 |
| OEM Mfg | Spicer |
| Bearing Plate (1) | 7.000 IN |
| Bearing Cap Diameter (1) | 1.938 IN |
| Bearing Cap Diameter B (mm) | 49.225 MM |
| Bearing Cap Type A | Bearing Plate |
| Bearing Cap Type B | Round |
| Hardware Included | Yes |
| Length A (In) | 7.000 IN |
| Length A (mm) | 177.800 MM |
| Length B (In) | 7.000 IN |
| Length B (mm) | 177.800 MM |
| Mounting Hardware Included | Yes |
| Sr(2)brng Cap To Brng Cap(osr) | 7.000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708996820 |
| UPC | 00023913121884 |
| VMRS Code | 024002046 |
SPICER 5-677X Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45U2324, 45U2335 |
| CHAMPION | 877 |
| Daimler Truck North America | SP 5 677X, SP 5 677XBULK, SP 5 677XHP |
| Dana Commercial Vehicle Service Parts | 2104-5677X, 5-469X |
| Freightliner | SP 5 677X, SP 5 677XBULK, SP 5 677XHP |
| GMB | 2300677 |
| GRADALL | 80384374 |
| International Harvester (IHC) | 1696917C91, 5677X, D5677X, E5677X, SB5677X, SD5677X |
| MACHINE SERVICE; INC | 5-677XT |
| MOOG | 877 |
| MOOG Chassis Products | 477, 877 |
| Mack | 2104-5677X |
| MasterPro | 477, 877 |
| McNeilus | 1262356, 126356, 2GN178 |
| Meritor | M677X |
| Midwest | 5-677XR |
| NEAPCO | 6-0677, 6-0677Q, 6-0677GXL |
| Navistar | 1658881C91, 1696917C91, 5677X, D5469X, D5677X, DS5677X, E5677X, SB5677X, SD5677X |
| Neapco OE Series | 6-0677, 6-0677GXL, 6-0677PQ, 6-0677Q |
| Paccar Parts | 5-677X |
| Peterbilt | 1262356, 2GN178 |
| Pierce | 1262356OSH |
| Precision | 477, 877 |
| Rockwell International | R-677X |
| SKF | 6-0677, 6-0677PQ, 6-0677Q, UJ477, UJ877 |
| SVL | 15-677X |
| UAP | 5-677X |
| Volvo | 2104-5677X, 3918980, SP 5677X |
| WORLD AMERICAN | 5-677XR, 5-469XRM |
| Workhorse | 3918980 |
